Schneider Electric ZB4BJ292 Padlockable Selector Head

Schneider Electric ZB4BJ292 Padlockable Selector Head

Schneider Electric
SKU:
ZB4BJ292
|
UPC:
3389110173376
Availability:
Contact us to confirm availability and lead times.
$72.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

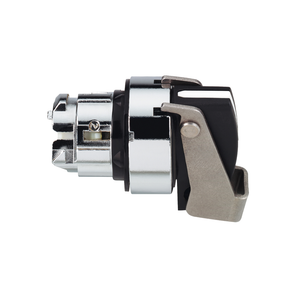

This Harmony XB4, black selector switch head with padlockable long handle has 2 positions, operates with stay-put mechanism with locking on right position. This switch head provides an ergonomic interface for controlling your machines. It is supplied with padlockable long handle to provide a secure manner for your authorized staff to make change in an operation. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
Cad Overall Height:
38 mm
Operator Additional Information:
padlockable
Mechanical Durability:
1000000 cycles
Cad Overall Depth:
50 mm
Protective Treatment:
TH
Type Of Operator:
stay put
Sale Per Indivisible Quantity:
1
Overvoltage Category:
class I IEC 60536
Ip Degree Of Protection:
IP67 IEC 60529 || IP69 || IP69K
Reach Free Of Svhc:
Yes
Cad Overall Width:
29 mm
Operator Position Information:
2 positions 90°
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Warranty:
18 months
Environmental Disclosure:
ENVPEP1808008EN
Bezel Material:
chromium plated metal
Rohs Exemption Information:
Yes
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Product Certifications:
DNV || GL || BV || CSA || UL Listed || LROS (Lloyds register of shipping)
Sustainable Offer Status:
Green Premium product
Locking Position:
on the right
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Product Or Component Type:
head for selector switch
Circularity Profile:
ENVEOLI1808008EN
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Mounting Diameter:
22 mm
Shape Of Signaling Unit Head:
round
Operator Profile:
black long handle
Device Presentation:
basic element
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Storage:
-40-70 °C
Device Short Name:
ZB4
Range Of Product:
Harmony XB4
Mercury Free:
Yes
China Rohs Regulation:
X
Net Weight:
0.048 kg
Electrical Composition Code:
C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || C15 1
Standards:
IEC 60947-5-5 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-1
Ambient Air Temperature For Operation:
-40-70 °C
Ik Degree Of Protection:
IK06 IEC 50102
Head Type:
standard
Toxic Heavy Metal Free:
Yes
