Schneider Electric ZB4BV05S Neon Pilot Light Head
Schneider Electric
$11.40
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

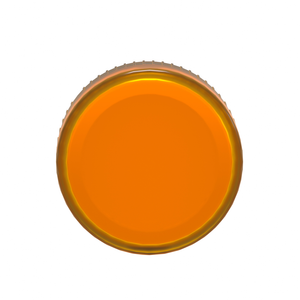

Schneider Electric ZB4BV05S Neon Pilot Light Head
This Harmony XB4, grooved lens orange head for pilot light is supplied with BA9s base. This head with BA9s base pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Head Type:
- standard
- Environmental Characteristic:
- high ambient lighting environment
- Sale Per Indivisible Quantity:
- 1
- Product Compatibility:
- BA 9s
- Cad Overall Width:
- 29 mm
- Overvoltage Category:
- class I IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Protective Treatment:
- TH
- Ambient Air Temperature For Storage:
- -40-70 °C
- Circularity Profile:
- ENVEOLI2308026EN
- Operator Additional Information:
- with grooved lens
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Range Of Product:
- Harmony XB4
- Mercury Free:
- Yes
- Cad Overall Height:
- 29 mm
- Toxic Heavy Metal Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP2308026EN
- Standards:
- UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || CSA C22.2 No 14 || JIS C8201-1
- Bezel Material:
- chromium plated metal
- Device Short Name:
- ZB4
- Cad Overall Depth:
- 30 mm
- Electrical Composition Code:
- P3 front mounting BA 9s || P4 front mounting BA 9s and transformer
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- round
- Cap/Operator Or Lens Colour:
- orange
- China Rohs Regulation:
- X
- Product Or Component Type:
- head for pilot light
- Ambient Air Temperature For Operation:
- -40-55 °C
- Mounting Diameter:
- 22 mm
- Device Presentation:
- basic element
- Warranty:
- 18 months
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Net Weight:
- 0.027 kg
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Ik Degree Of Protection:
- IK06 IEC 50102
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
