Schneider Electric ZB4BV063 Pilot Light Head
Schneider Electric
$7.60
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

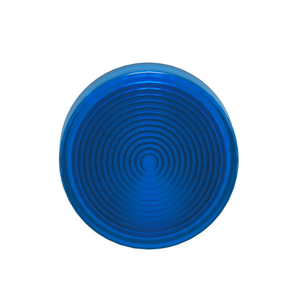

Schneider Electric ZB4BV063 Pilot Light Head
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Harmony XB4, plain lens head for pilot light with universal LED is blue. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Cad Overall Depth:
- 30 mm
- Product Compatibility:
- universal LED
- Bezel Material:
- chromium plated metal
- Operator Additional Information:
- with plain lens
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Cap/Operator Or Lens Colour:
- blue
- Range Of Product:
- Harmony XB4
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Product Or Component Type:
- head for pilot light
- Cad Overall Height:
- 29 mm
- Ambient Air Temperature For Operation:
- -40-70 °C
- Head Type:
- standard
- Circularity Profile:
- ENVEOLI2308026EN
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Mercury Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Warranty:
- 18 months
- Net Weight:
- 0.026 kg
- Device Presentation:
- basic element
- Rohs Exemption Information:
- Yes
- Toxic Heavy Metal Free:
- Yes
- China Rohs Regulation:
- X
- Sustainable Offer Status:
- Green Premium product
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Cad Overall Width:
- 29 mm
- Standards:
- JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1
- Environmental Disclosure:
- ENVPEP2308026EN
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Mounting Diameter:
- 22 mm
- Device Short Name:
- ZB4
- Sale Per Indivisible Quantity:
- 1
- Shape Of Signaling Unit Head:
- round
- Protective Treatment:
- TH
- Overvoltage Category:
- class I IEC 60536
- Ik Degree Of Protection:
- IK06 IEC 50102
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer
- Ambient Air Temperature For Storage:
- -40-70 °C
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
