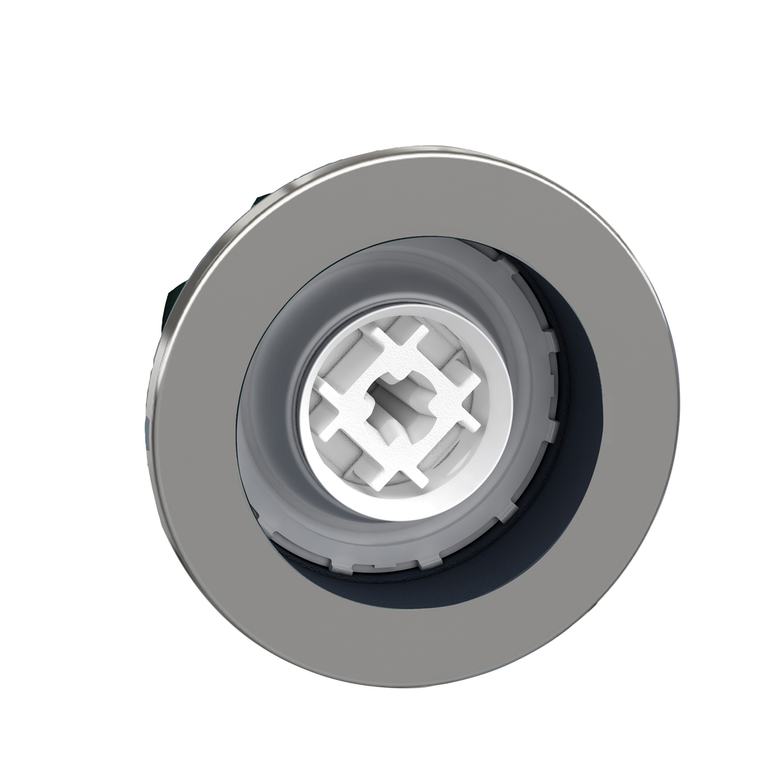

Schneider Electric ZB4FH0 Flush Pb Head Without Cap
Schneider Electric
$11.30
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric ZB4FH0 Flush Pb Head Without Cap
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Shape Of Signaling Unit Head:
- round
- Range Of Product:
- Harmony XB4
- Ik Degree Of Protection:
- IK06 IEC 50102
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Toxic Heavy Metal Free:
- Yes
- Circularity Profile:
- ENVEOLI1808008EN
- Sale Per Indivisible Quantity:
- 1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Warranty:
- 18 months
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Or Component Type:
- head for non-illuminated push-button
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Type Of Operator:
- push-push
- Mercury Free:
- Yes
- Standards:
- CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || UL 508 || EN/IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
- Cad Overall Height:
- 36.6 mm
- Mechanical Durability:
- 500000 cycles
- Environmental Disclosure:
- ENVPEP1808008EN
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Operator Profile:
- without cap flush
- Rohs Exemption Information:
- Yes
- Protective Treatment:
- TH
- Overvoltage Category:
- class I IEC 60536
- Electrical Composition Code:
- C11 3 single front mounting || C15 1 single front mounting || C9 3 single front mounting
- Reach Free Of Svhc:
- Yes
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 25 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Bezel Material:
- chromium plated metal
- China Rohs Regulation:
- X
- Device Short Name:
- ZB4F
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50E || Type 12 UL 50E || Type 4 UL 50E || Type 4X UL 50E
- Cad Overall Depth:
- 31 mm
- Product Certifications:
- UL Listed || CSA || CCC || EAC
- Head Type:
- built-in-flush
- Cad Overall Width:
- 36.6 mm
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C
