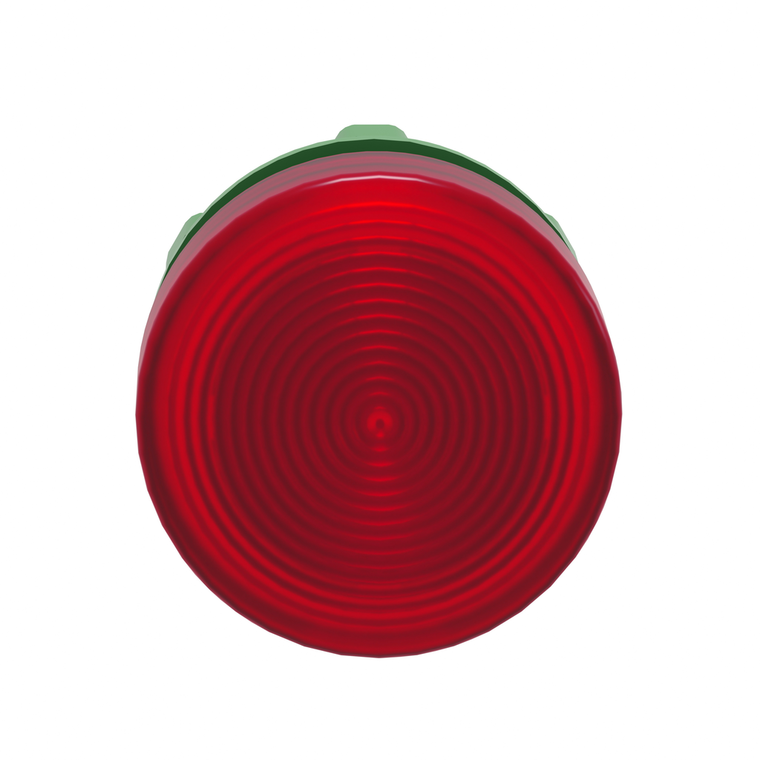

Schneider Electric ZB5AV043S Pilot Light Head
This Harmony XB5, grooved lens head for pilot light with universal LED is red. This head for universal LED pilot light is designed to last without maintenance for a bright indicator of process and machine operations. It is clearly distinguishable visually at a distance thanks to a clear color of len, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK05 IEC 50102
- Cad Overall Width:
- 29 mm
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Depth:
- 31 mm
- Overvoltage Category:
- class II IEC 60536
- Environmental Characteristic:
- high ambient lighting environment
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Cap/Operator Or Lens Colour:
- red
- Operator Additional Information:
- with grooved lens
- Head Type:
- standard
- Ambient Air Temperature For Operation:
- -40-70 °C
- Circularity Profile:
- ENVEOLI1710010EN
- Device Presentation:
- basic element
- Reach Free Of Svhc:
- Yes
- Environmental Disclosure:
- ENVPEP1710010EN
- Warranty:
- 18 months
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED || PR1 rear mounting integral LED
- Mounting Diameter:
- 22 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Standards:
- EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-5-1 || UL 508 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || EN/IEC 60947-5-5 || JIS C8201-1
- Device Short Name:
- ZB5
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- head for pilot light
- Rohs Exemption Information:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653
- Bezel Material:
- dark grey plastic
- Shape Of Signaling Unit Head:
- round
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Cad Overall Height:
- 29 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- China Rohs Regulation:
- X
- Mercury Free:
- Yes
- Net Weight:
- 0.017 kg
- Station Name:
- XALD 1...5 cut-outs || XALK 2...5 cut-outs
- Product Compatibility:
- universal LED
- Ambient Air Temperature For Storage:
- -40-70 °C
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Protective Treatment:
- TH
- Toxic Heavy Metal Free:
- Yes
