Schneider Electric ZB5FA0 Flush Mounted Pushbutton Head Without Ca

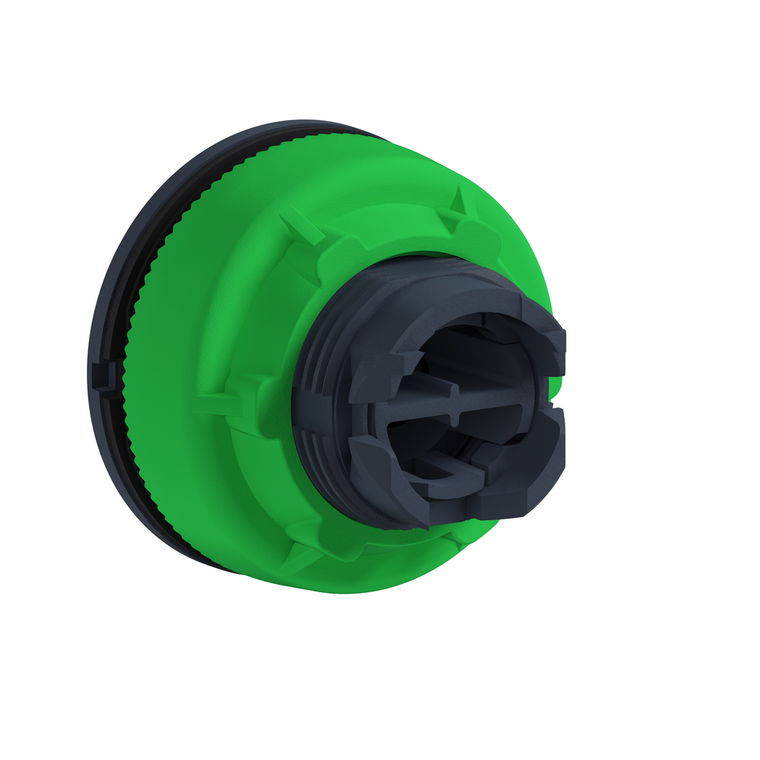

This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69 protection, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Cad Overall Width:
- 37 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Protective Treatment:
- TH
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Device Short Name:
- ZB5
- Operator Profile:
- without cap
- Rohs Exemption Information:
- Yes
- Cad Overall Height:
- 37 mm
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.028 kg
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Product Or Component Type:
- head for non-illuminated push-button
- Warranty:
- 18 months
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Mounting Diameter:
- 30.5 mm
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Mercury Free:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile:
- ENVEOLI1710010EN
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Environmental Disclosure:
- ENVPEP1710010EN
- China Rohs Regulation:
- X
- Type Of Operator:
- spring return
- Bezel Material:
- dark grey plastic
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || UL Listed || BV || GL || DNV
- Sale Per Indivisible Quantity:
- 1
- Cad Overall Depth:
- 30 mm
- Standards:
- JIS C8201-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Sustainable Offer Status:
- Green Premium product
- Head Type:
- built-in-flush
- Mechanical Durability:
- 10000000 cycles
- Range Of Product:
- Harmony XB5
- Overvoltage Category:
- class II IEC 60536
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
- Ik Degree Of Protection:
- IK03 IEC 50102
- Ambient Air Temperature For Operation:
- -40-70 °C
- Datasheet:
- View
