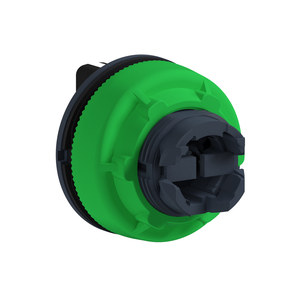

Schneider Electric ZB5FD8 Flush Mounted Black Selector Switch Head
Schneider Electric
$29.70
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This 30 mm selector switch head provides an ergonomic interface for controlling your machine. It comes with antimicrobial characteristics. It is easily installed and replaced on compatible complete selector switch units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP69, IP66 protection, making it ideal for operation in harsh environments.
- Circularity Profile:
- ENVEOLI1710010EN
- Shape Of Signaling Unit Head:
- round
- Rohs Exemption Information:
- Yes
- Electrical Composition Code:
- C3 6 single front mounting || C4 6 single and double front mounting || C5 5 single front mounting || C6 5 single and double front mounting || C7 4 single front mounting || C8 4 single and double front mounting || C11 3 single front mounting || SF1 3
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Or Component Type:
- head for selector switch
- Mounting Diameter:
- 30.5 mm
- Toxic Heavy Metal Free:
- Yes
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Device Short Name:
- ZB5
- Head Type:
- built-in-flush
- Overvoltage Category:
- class II IEC 60536
- Net Weight:
- 0.031 kg
- Sustainable Offer Status:
- Green Premium product
- Protective Treatment:
- TH
- Standards:
- IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Sale Per Indivisible Quantity:
- 1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Cad Overall Depth:
- 46 mm
- Cad Overall Width:
- 37 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Operator Profile:
- black standard handle
- Mechanical Durability:
- 1000000 cycles
- Bezel Material:
- dark grey plastic
- Type Of Operator:
- right to centre spring return
- Cad Overall Height:
- 37 mm
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Free Of Svhc:
- Yes
- Mercury Free:
- Yes
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529 || IP69K || IP69
- Product Certifications:
- GL || UL Listed || DNV || LROS (Lloyds register of shipping) || BV || CSA
- Operator Position Information:
- 3 positions +/- 45°
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Ambient Air Temperature For Operation:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Range Of Product:
- Harmony XB5
- Ik Degree Of Protection:
- IK03 IEC 50102
- Environmental Disclosure:
- ENVPEP1710010EN
- Datasheet:
- View
