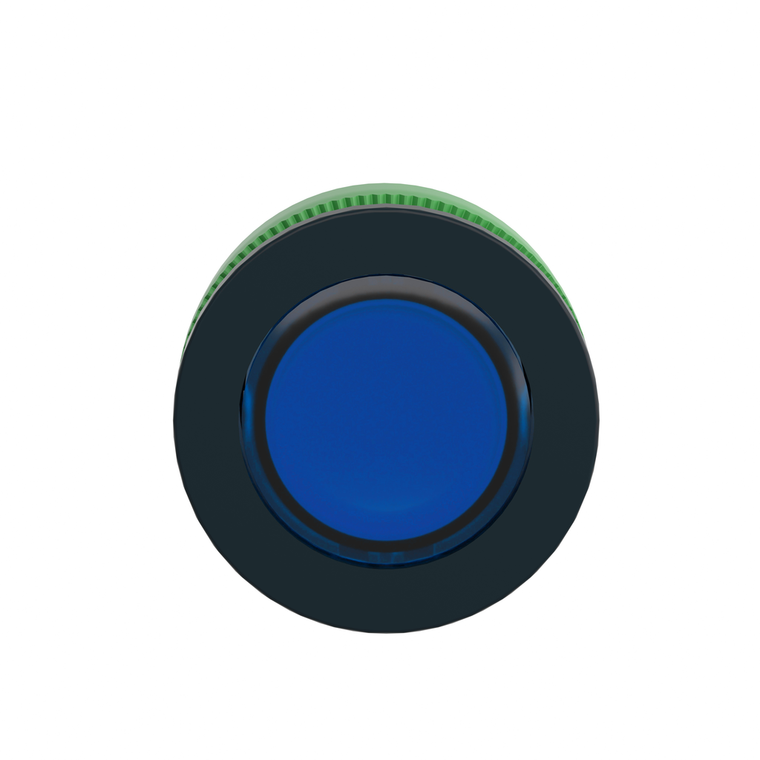

Schneider Electric ZB5FV063 Flush Mounted Blue Pilot Light Head For
Schneider Electric
$7.90
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This pilot light head for universal LED provides clear visual feedback on the status of your machines. It comes with antimicrobial characteristics. It is easily installed into a 30mm diameter panel cut-outs. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance.
- Toxic Heavy Metal Free:
- Yes
- Operator Additional Information:
- with plain lens
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Device Presentation:
- basic element
- Cad Overall Width:
- 37 mm
- Cap/Operator Or Lens Colour:
- blue
- Circularity Profile:
- ENVEOLI1710010EN
- Sale Per Indivisible Quantity:
- 1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Product Compatibility:
- universal LED
- Important Message:
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Net Weight:
- 0.015 kg
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- ZB5
- Shape Of Signaling Unit Head:
- round
- Standards:
- UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-1 || ISO 21702 || ISO 22196:2011
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Environmental Disclosure:
- ENVPEP1710010EN
- Product Or Component Type:
- head for pilot light
- Electrical Composition Code:
- P1 front mounting integral LED || P2 front mounting integral LED and transformer || PF1 front mounting integral LED
- Head Type:
- built-in-flush
- Ik Degree Of Protection:
- IK03 IEC 50102
- Range Of Product:
- Harmony XB5
- Cad Overall Depth:
- 30 mm
- Protective Treatment:
- TH
- China Rohs Regulation:
- X
- Mounting Diameter:
- 30.5 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Bezel Material:
- dark grey plastic
- Cad Overall Height:
- 37 mm
- Mercury Free:
- Yes
- Ambient Air Temperature For Storage:
- -40-70 °C
- Rohs Exemption Information:
- Yes
- Sustainable Offer Status:
- Green Premium product
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Datasheet:
- View
