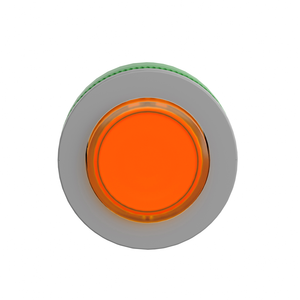

Schneider Electric ZB5FW353C0 Flmnt Orange Cap Illum Pbhead-Int Led

(No reviews yet) Write a Review

Write a Review

Schneider Electric ZB5FW353C0 Flmnt Orange Cap Illum Pbhead-Int Led

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

ZB5FW353C0

UPC:

3606489754679

MPN:

Condition:

New

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Range Of Product:

Harmony XB5

Protective Treatment:

TC

Toxic Heavy Metal Free:

Yes

Mercury Free:

Yes

Rohs Exemption Information:

Yes

Product Compatibility:

universal LED

Electrical Composition Code:

M1 6 single front mounting integral LED || M2 6 single and double front mounting integral LED || M6 2 single front mounting integral LED and transformer || M10 2 single front mounting integral LED || MF1 2 single front mounting integral LED

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Device Short Name:

ZB5

Ambient Air Temperature For Storage:

-40-70 °C

Mechanical Durability:

10000000 cycles

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Type Of Operator:

spring return

Mounting Diameter:

30.5 mm

Shape Of Signaling Unit Head:

round

Bezel Material:

plastic colour plated grey

Product Certifications:

GL || LROS (Lloyds register of shipping) || BV || CSA || DNV || UL Listed

China Rohs Regulation:

X

Ambient Air Temperature For Operation:

-40-70 °C

Net Weight:

0.017 kg

Cad Overall Depth:

30 mm

Device Presentation:

basic element

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Operator Additional Information:

with plain lens

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Sale Per Indivisible Quantity:

1

Overvoltage Category:

class II IEC 60536

Cap/Operator Or Lens Colour:

orange

Main Group:

illum push-button

Reach Free Of Svhc:

Yes

Cad Overall Height:

37 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Operator Profile:

orange flush, unmarked

Group Of Product:

flush push integral LED

Head Type:

built-in-flush

Ik Degree Of Protection:

IK03 EN 50102

Standards:

UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-4 || CSA C22.2 No 14 || GB 14048.5 || EN/IEC 60947-5-1 || EN/IEC 60947-1 || JIS C8201-1

Product Or Component Type:

head for illuminated push-button

Cad Overall Width:

37 mm

Marking:

unmarked
