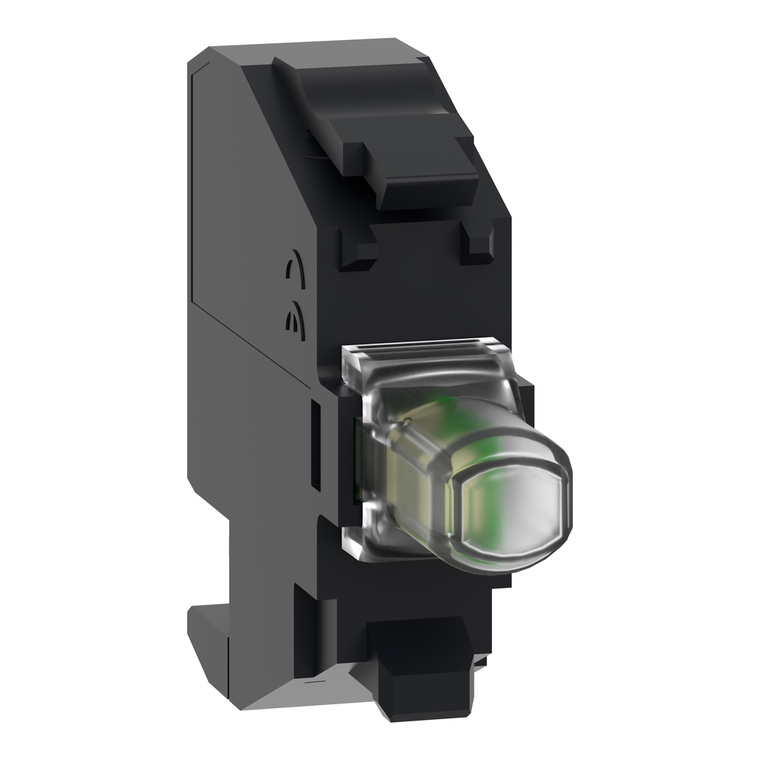

Schneider Electric ZBVG14 Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, plug-in connector, 110...120V

Schneider Electric ZBVG14 Light block, Harmony XB4, Harmony XB5, for head 22mm, universal LED, plug-in connector, 110...120V

Schneider Electric
SKU:
ZBVG14
$57.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony ZB, white light block operates with a universal LED. It is supplied with 110V to 120V AC and uses plug-in terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Additional Information
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Storage:
-40-70°C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
China Rohs Regulation:
X
Bulb Base:
integral LED
Warranty:
18 months
Standards:
IEC 60947-5-4 || IEC 60947-5-5 || UL 508 || IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Surge Withstand:
1 kV IEC 61000-4-5
[Us] Rated Supply Voltage:
110...120 V
Sale Per Indivisible Quantity:
5
Country of Origin:
France
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Ambient Air Temperature For Operation:
-40-70°C
Current Consumption:
19 mA
Protective Treatment:
TH
Net Weight:
0.016 kg
Light Source Colour:
white
Mounting Of Block:
front mounting
Connections - Terminals:
plug-in connector
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Device Short Name:
ZBV
Ip Degree Of Protection:
IP20 IEC 60529
[Us] Rated Supply Voltage:
110...120 V AC 50/60 Hz
Signaling Type:
steady
Range Of Product:
Harmony XB4 || Harmony XB5
Product Or Component Type:
light block
Light Block Supply:
direct
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Rohs Exemption Information:
Yes
Light Source:
universal LED
Weight:
0.016 kg
Electrical Composition Code:
M1 || M2 || M3 || M4 || M5 || M6 || M10 || MF1 || P1 || P2 || PF1
Service Life:
100000 h at rated voltage and 25°C
Electromagnetic Emission:
class B IEC 55011
