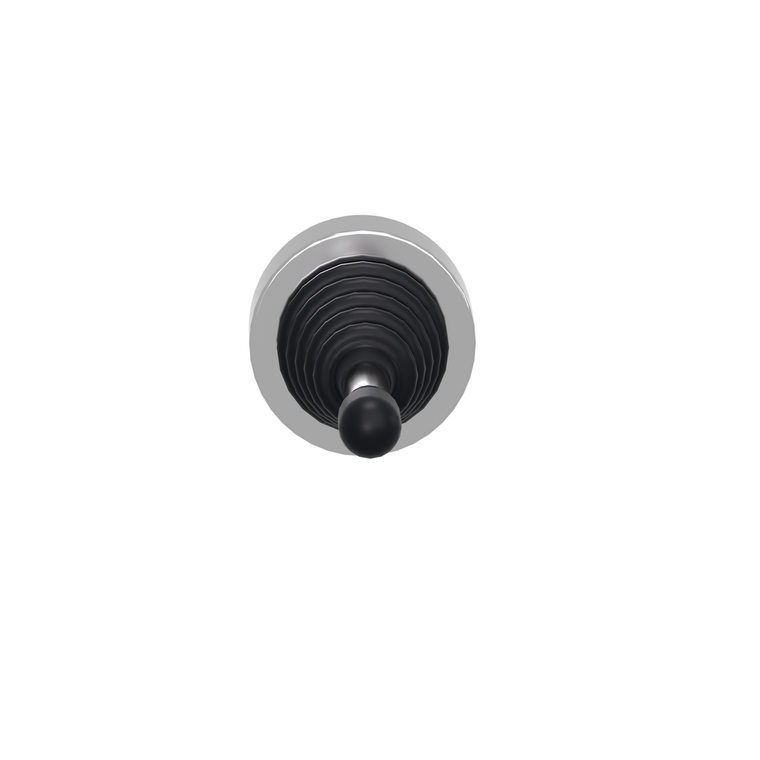

Schneider Electric ZD4PA24 Joystick Component
Schneider Electric
$205.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This head with operating shaft operates with 4 direction spring-return-to-zero-position mechanism and provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible joystick controllers. It also provides a smooth and precise control of your machine in a variety of industrial applications. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.
- Protective Treatment:
- TH
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operator Position Information:
- 5 positions
- Sale Per Indivisible Quantity:
- 1
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Operator Profile:
- 54 mm long operating shaft
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Warranty:
- 18 months
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Mechanical Durability:
- 1000000 cycles
- Operator Direction Information:
- 4 directions
- Range Of Product:
- Harmony XB4
- Ik Degree Of Protection:
- IK03 IEC 50102
- Product Or Component Type:
- head for joystick controller
- Net Weight:
- 0.022 kg
- Electrical Shock Protection Class:
- class I IEC 60536
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head:
- round
- Standards:
- EN/IEC 60947-5-5 || EN/IEC 60947-1 || UL 508 || JIS C8201-5-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || EN/IEC 60947-5-4 || JIS C8201-1
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- China Rohs Regulation:
- X
- Bezel Material:
- chromium plated metal
- Ip Degree Of Protection:
- IP66 IEC 60529
- Rohs Exemption Information:
- Yes
- Device Short Name:
- ZB4
- Device Presentation:
- basic element
- Mounting Diameter:
- 22 mm
- Mercury Free:
- Yes
- Product Certifications:
- CSA || LROS (Lloyds register of shipping) || GL || BV || UL Listed || DNV
- Type Of Operator:
- to zero position spring return
- Ambient Air Temperature For Operation:
- -25-70 °C
