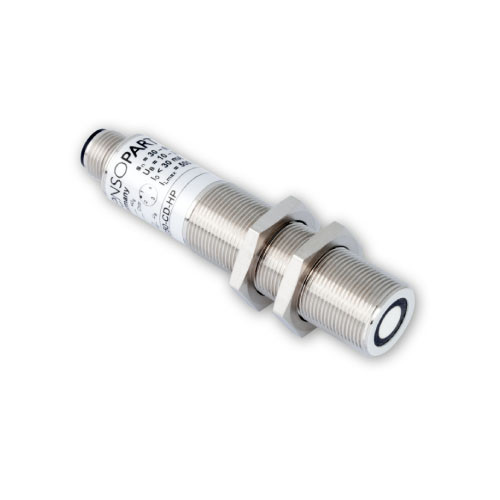

SensoPart UT 18-270-PSL4 Ultrasonic sensor with switching output
Sensopart
The SensoPart UT 18-270-PSL4 Ultrasonic Sensor is designed for precision and reliability in various industrial applications. With a working distance range of 30 to 300 mm, this sensor offers a high switching frequency of 13 Hz and a rapid response time of 30 ms, ensuring quick and accurate detection. It features a PNP switching output with both normally open (N.O.) and normally closed (N.C.) configurations, housed in a robust M18 enclosure. The sensor operates at an ultrasonic frequency of 390 kHz, providing a resolution of 0.4 mm and repeatability of 0.05 mm, making it ideal for tasks requiring high precision.
The UT 18-270-PSL4 is equipped with a 4-pin M12 plug for easy connectivity and is rated IP65 for protection against dust and water ingress, ensuring durability in challenging environments. It operates efficiently within a temperature range of -25 to +70°C, with a minimal temperature drift of ±1.5%. This sensor is part of the M18 series and includes one switching output, making it a versatile choice for various automation needs.
For more detailed information, you can access the datasheet, catalog, operating instructions, and CAD files through the provided links. If you require a quote, please request one through the available option.
- Switching frequency [Hz]:
- 13
- Response time [ms]:
- 30
- Output:
- Switching (PNP)
- Ultrasonic frequency [kHz]:
- 390
- Series:
- M18
- Working distance min. [mm]:
- 30
- Working distance max. [mm]:
- 300
- Amount of swithing outputs:
- 1
- Resolution [mm]:
- 0.4
- Repeatability [mm]:
- 0.05
- Temperature range [°C]:
- -25 ... +70
- Temperature drift [%]:
- ± 1.5 %
- Connection type:
- Plug M12, 4-pin
- Enclosure rating:
- IP65
- Datasheet:
- View
- Catalog:
- View
- Operating Instructions:
- View
- CAD:
- View
