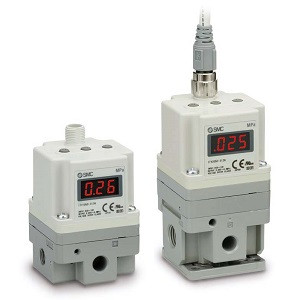

SMC ITV2030-012N3-X26 ITV1000/2000 Series Electro-pneumatic Regulator Manifold Type Single Unit
SMC
$387.15
The SMC ITV2030-012N3-X26 is a high-performance electro-pneumatic regulator designed for precise control of air pressure in manifold type single unit applications. This unit offers stepless control of air pressure in direct proportion to electric signals, ensuring optimal performance and efficiency. With a sensitivity of 0.2 kPa (100 kPa specification), it provides exceptional accuracy and responsiveness. The regulator boasts a linearity of ±1% or less (F.S.) and a hysteresis of 0.5% or less (F.S.), making it ideal for applications requiring precise pressure regulation. It supports various communication protocols, including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C, allowing for seamless integration into existing systems. Whether used in industrial automation or other demanding environments, the SMC ITV2030-012N3-X26 delivers reliable and consistent performance.
- Type:
- 2000 type
- Pressure Range:
- 0.5 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 1 To 5 VDC
- Port Size:
- 1/4
- Cable connector:
- Without Cable Connector
- Pressure display unit:
- bar
- Made To Order:
- For Manifold
