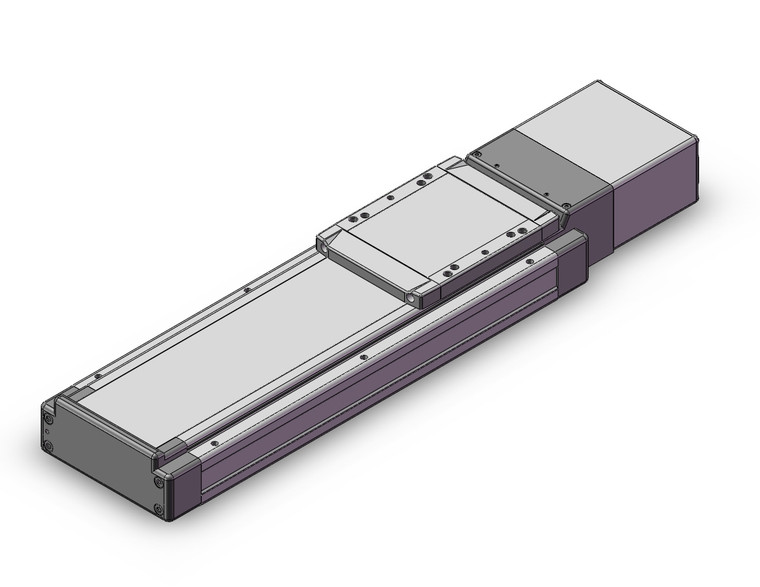

SMC LEJS63S3A-300 LEJS-AC Series Electric Actuator/High Rigidity Slider Type Ball Screw Drive AC Servo Motor
SMC
$4,000.00
The SMC LEJS63S3A-300 is a high-performance electric actuator from the LEJS-AC Series, designed for applications requiring precision and durability. This high rigidity slider type actuator features a ball screw drive and is powered by an AC servo motor, ensuring reliable and efficient operation. Its low-profile design reduces the height dimension by approximately 36%, making it ideal for space-constrained environments. With a maximum work load capacity of 85 kg and positioning repeatability of ±0.02 mm, it offers exceptional accuracy and stability. The actuator supports a maximum acceleration/deceleration of 20000 mm/S², allowing for rapid and smooth motion. Additionally, it meets clean specifications compliant with ISO Class 4 (Class 10) standards, ensuring suitability for cleanroom applications. Compatible with a range of drivers, including LECSA, LECSB(-T), LECSC(-T), LECSS, LECSS-T, LECSN-T, LECY, and several discontinued models, the LEJS63S3A-300 provides versatile integration options for various industrial setups.
- Accuracy:
- Basic
- Size:
- 63
- Motor Type:
- AC servo motor(Incremental encoder), Output 200W, Actuator size 63 mm
- Lead:
- Size40:16mm, Size63:20 mm
- Stroke:
- Stroke 300 mm
- Motor Option:
- Without Lock
- Cable Type:
- Without Cable
- Cable Length:
- Without Cable
- Driver Type:
- Without Driver
- I/O Cable Length:
- Without Cable
