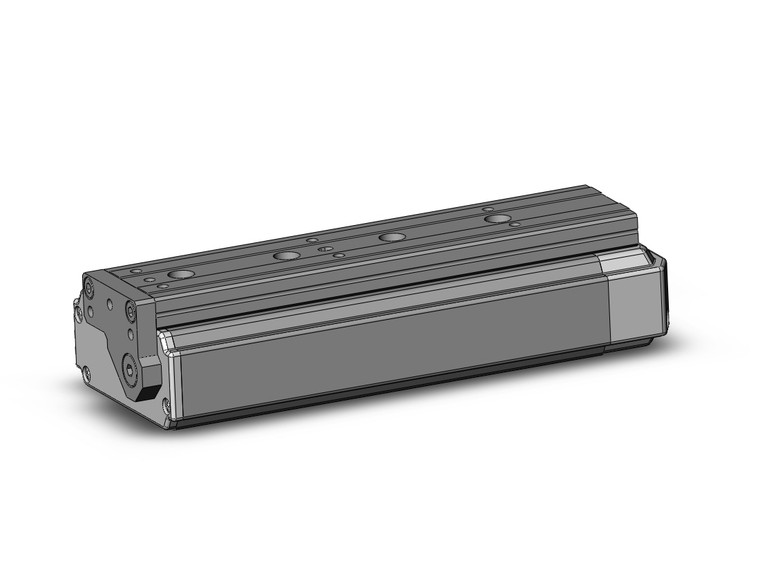

SMC LESH8RJ-75-R1 LESH-DC Series Electric Slide Table/High Rigidity Type (Servo 24 VDC)/Servo Motor(24 VDC)
SMC
$1,070.00
The SMC LESH8RJ-75-R1 LESH-DC Series Electric Slide Table is designed for high rigidity and precision, featuring a servo motor operating at 24 VDC. This advanced electric slide table simplifies setup with only two required settings: position and speed. The actuator comes pre-configured with the controller, ensuring seamless integration and operation. The innovative design integrates the guide rail and table, utilizing a recirculating linear guide for enhanced rigidity and precision. Experience reduced cycle times with a maximum acceleration and deceleration of 5,000 mm/S² and a top speed of 400 mm/s. The slide table delivers a maximum pushing force of 180 N and offers exceptional positioning repeatability of ±0.05 mm. It is compatible with a range of controllers, including JXC51, JXC61, JXCE1, JXC91, JXCP1, JXCD1, JXCL1, JXCM1, LECA6, LECP1, LECPA, and LECP6, although some models have been discontinued. This product is ideal for applications requiring high precision and reliability.
- Size:
- 8
- Motor Mounting Position:
- Standard Type,R Type
- Motor Type:
- Step Motor (Servo 24 VDC)
- Lead:
- Size8::8 mm,Size16:10 mm,Size25:16 mm
- Stroke:
- Stroke 75 mm
- Motor Option:
- Without Option
- Body Option:
- Without Option
- Mounting Style:
- Without Side Holder
- Actuator Cable Type:
- Robotic Cable (Flexible Cable)
- Actuator Cable Length:
- 1.5 m
- Controller Type:
- Without Controller
- I/O Cable Length, Communication Plug:
- Without Cable, Without Communication Plug Connector
- Controller Mounting:
- Screw Mounting
