WAGO 2091-1422/200-000/997-405 Pack of 260
Wago
$267.80

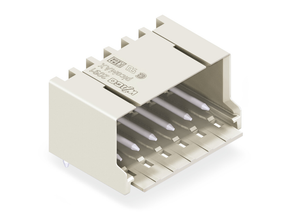

THT male header 1.0 mm solder pin angled, light gray.
The WAGO component equivalent to 20911422200000997405 is a specific part or product within the WAGO catalog, which is known for providing electrical interconnection and automation solutions. This component likely serves a particular function in electrical systems, such as connecting wires, facilitating signal transmission, or integrating automation processes. WAGO components are typically used in various industrial and commercial applications to ensure reliable and efficient electrical connections and system operations.
- approvals per:
- UL 1059
- color:
- Light gray
- connector connection type:
- For PCB
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Male connector/plug
- country of origin sales organisation germany:
- DE
- depth:
- 17.5 mm / 0.689 inch
- fire load:
- 0.000 MJ
- flammability class per ul94:
- V0
- height:
- 14.8 mm / 0.583 inch
- height from the surface:
- 12.4 mm / 0.488 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Locking latch
- material group:
- I
- mating direction to the pcb:
- 0
- mismating protection:
- No
- nominal voltage ii 2:
- 320 V
- nominal voltage iii 3:
- 160 V
- packaging type:
- Bag
- pcb contact:
- THR
- pin spacing:
- 3.5 mm / 0.138 inch
- plated through hole diameter thr:
- 1.2 (+0.1) mm
- pole no:
- 2
- rated current:
- 0.416666666666667
- rated current ul use group b:
- 0.416666666666667
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 2.5 kV
- rated surge voltage iii 2:
- 2.5 kV
- rated surge voltage iii 3:
- 2.5 kV
- rated voltage iii 2:
- 160 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- reel diameter of tape and reel packaging:
- 330 mm
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solder pin diameter:
- 1 mm
- solder pin length:
- 2.4 mm
- weight:
- 0.930 g
- width:
- 9 mm / 0.354 inch
