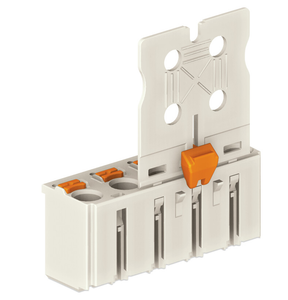

WAGO 2092-3102/002-000 1-conductor female plug; Gripping plate sliding connector release; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; 2,50 mm²; light gray
Wago
$2.05
(No reviews yet)
Write a Review
Write a Review
Wago
WAGO 2092-3102/002-000 1-conductor female plug; Gripping plate sliding connector release; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; 2,50 mm²; light gray
1-conductor female connector; push-button; Push-in CAGE CLAMP; 2.5 mm²; Pin spacing 7.5 mm; 2-pole; Gripping plate sliding connector release; 2,50 mm²; light gray.
The WAGO component equivalent to 20923102002000 is a specific part used in electrical and automation systems. It is designed to provide reliable and efficient connectivity solutions, ensuring secure and stable connections in various applications. This component is known for its high quality, durability, and compatibility with other WAGO products, making it a preferred choice for professionals in the industry.
- actuation type:
- Push-button
- approvals per:
- UL 1059
- clamping spring material:
- Chrome nickel spring steel (CrNi)
- color:
- Light gray
- connection technology:
- Push-in CAGE CLAMP
- connector connection type:
- For conductor
- contact material:
- Electrolytic copper (ECu)
- contact plating:
- Tin-plated
- contact type pluggable connector:
- Female connector/socket
- country of origin sales organisation germany:
- DE
- depth:
- 14.4 mm / 0.567 inch
- design:
- With gripping plate and sliding connector release
- fine stranded conductor:
- 0.2 2.5 mm / 24 12 AWG
- fine stranded conductor with insulated ferrule:
- 0.25 1.5 mm
- fine stranded conductor with uninsulated ferrule:
- 0.25 2.5 mm
- fire load:
- 0.011 MJ
- flammability class per ul94:
- V0
- height:
- 34 mm / 1.339 inch
- insulation material:
- Polyphthalamide (PPA GF)
- legend ratings:
- (III / 2) Overvoltage category III / Pollution degree 2
- limit temperature range:
- -60 +100 C
- locking of plug in connection:
- Without
- material group:
- I
- mismating protection:
- No
- nominal voltage ii 2:
- 1000 V
- nominal voltage iii 3:
- 400 V
- packaging type:
- Box
- pin spacing:
- 7.5 mm / 0.295 inch
- pole no:
- 2
- rated current:
- 16 A
- rated current ul use group b:
- 15 A
- rated current ul use group d:
- 0.416666666666667
- rated surge voltage ii 2:
- 4 kV
- rated surge voltage iii 2:
- 4 kV
- rated surge voltage iii 3:
- 6 kV
- rated voltage iii 2:
- 630 V
- rated voltage ul use group b:
- 300 V
- rated voltage ul use group d:
- 300 V
- ratings per:
- IEC/EN 60664-1
- safety information 1:
- The picoMAX Pluggable Connection System includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should en
- solid conductor:
- 0.2 2.5 mm / 24 12 AWG
- strip length:
- 9 10 mm / 0.35 0.39 inch
- weight:
- 2.450 g
- width:
- 12.5 mm / 0.492 inch
