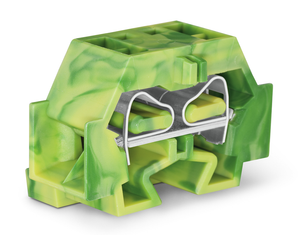

4-conductor terminal block; without push-buttons; with fixing flange; 1-pole; for screw or similar mounting types; Fixing hole 3.2 mm Ã; 1.5 mm²; CAGE CLAMP; 1,50 mm²; green-yellow.
The WAGO 260 series feed-through/thru ground/earthing terminal block features a single deck/level with side/lateral marking slots, is green-yellow in color, and includes one grounding/protective-earth (1PE) terminal for four wires using two clamps each (2+2). It supports wire sizes from 0.08mm² to 1.5mm² or #28AWG to #16AWG and utilizes CAGE CLAMP spring connections. The terminal block has a 3.2mm fixing hole for mounting and is equivalent to model 260337.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- CH
- depth:
- 25.1 mm / 0.988 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 0.043 MJ
- flammability class per ul94:
- V0
- height from the surface:
- 17.1 mm / 0.673 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Side marking
- mounting type:
- Mounting flange
- packaging type:
- Box
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 2.564 g
- width:
- 8 mm / 0.315 inch
- wiring direction:
- Side-entry wiring
