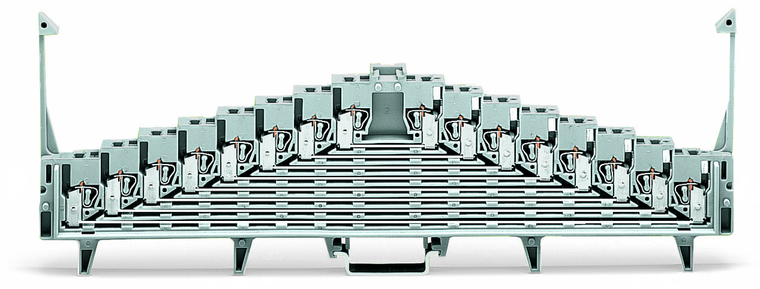

8-level terminal block for matrix patching; with locking clips; one potential per level; with 2.3 mm à test port; marking: 0-1-2-3-4-5-6-7--7-6-5-4-3-2-1; for 35 x 15 mounting rail; 1.5 mm²; 1,50 mm²; gray.
The WAGO 727 series feed-through terminal block is designed for matrix patching with 8 decks/levels and includes cover locking clips and a center marking slot. It features "0-1-2-3-4-5-6-7--7-6-5-4-3-2-1-0" markings and is gray in color. The terminal block has 8 feed-through poles, accommodating 32 wires with 16 clamps on each side, suitable for wire sizes ranging from 0.08mm² to 1.5mm² or #28AWG to #16AWG. It supports a rated current of 10A and utilizes CAGE CLAMP spring connections. The unit is mounted on a DIN-35 rail with a width of 7.62mm and is equivalent to model 727129001000.
- actuation type:
- Operating tool
- color:
- Gray
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 76 mm / 2.992 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 1.5 mm / 28 16 AWG
- fire load:
- 1.187 MJ
- flammability class per ul94:
- V0
- height:
- 226 mm / 8.898 inch
- insulation material:
- Polyamide (PA66)
- legend ratings:
- (III / 3) Overvoltage category III / Pollution degree 3
- marking:
- 0-1-2-3-4-5-6-7--7-6-5-4-3-2-1-0
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal voltage iii 3:
- 250 V
- packaging type:
- Box
- rated current:
- 0.416666666666667
- rated surge voltage iii 3:
- 4 kV
- solid conductor:
- 0.08 1.5 mm / 28 16 AWG
- strip length:
- 8 10 mm / 0.31 0.39 inch
- weight:
- 73.838 g
- width:
- 7.62 mm / 0.3 inch
- wiring direction:
- Front-entry wiring
