Wago

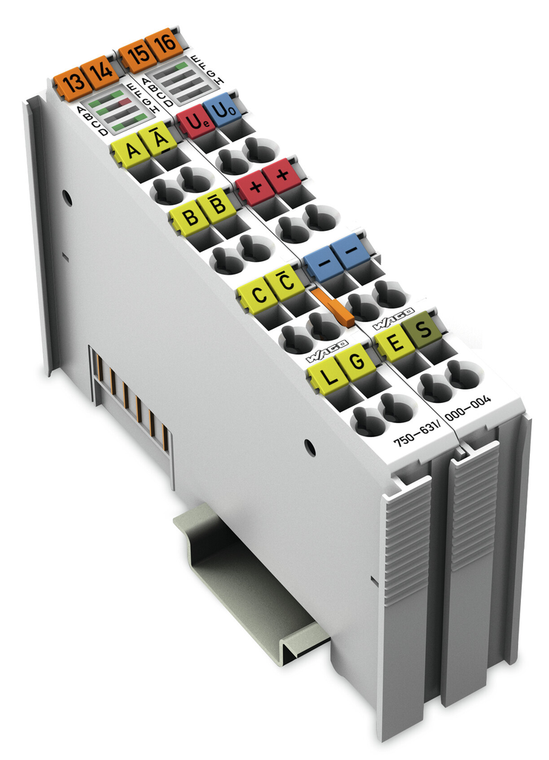

WAGO 750-631/000-004

SKU:

750-631/000-004

UPC:

MPN:

750-631/000-004

Condition:

New

color:

Light gray

commands:

Reading, setting, activating

conformity marking:

CE

connection technology inputs outputs:

16 x CAGE CLAMP

connection type 1:

Inputs/outputs

counter depth:

16 bits

country of origin sales organisation germany:

DE

data width:

2-byte output: 5-byte input: 2x 8-bit control/status (optional): 3 additional output bytes (reserved)

depth:

69.8 mm / 2.748 inch

depth from upper edge of din rail:

62.6 mm / 2.465 inch

emc emission of interference:

Per EN 61000-6-4

emc immunity to interference:

Per EN 61000-6-2

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

0.170 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

isolation:

500 V system/field

limit frequency:

1000 kHz

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

operating altitude:

0 2000 m

packaging type:

Box

permissible h2s contaminant concentration at a relative humidity 75:

10 ppm

permissible so2 contaminant concentration at a relative humidity 75:

25 ppm

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

50 mA

power consumption field supply module with no external load:

10 mA

protection type:

IP20

quadrature decoder:

4x evaluation

relative humidity without condensation:

0.95

shock resistance:

15g per IEC 60068-2-27

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage system:

5 VDC: via data contacts

supply voltage transmitter:

5 VDC

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

transmitter connection:

A, /A, B, /B, C, /C (RS-422 inputs)

transmitter supply current max:

200 mA

vibration resistance:

Per IEC 60068-2-6

voltage range for signal 0:

UABC = 0 V, UABC/ = 5 V: Latch, gate ¤ 5.0 V: External error U 5.0 V or open input

voltage range for signal 1:

UABC = 5 V, UABC/ = 0 V: Latch, gate 15.0 V: External error U < 0.5 V

weight:

92.100 g

width:

24 mm / 0.945 inch

zero impulse latch:

16 bits
