Wago

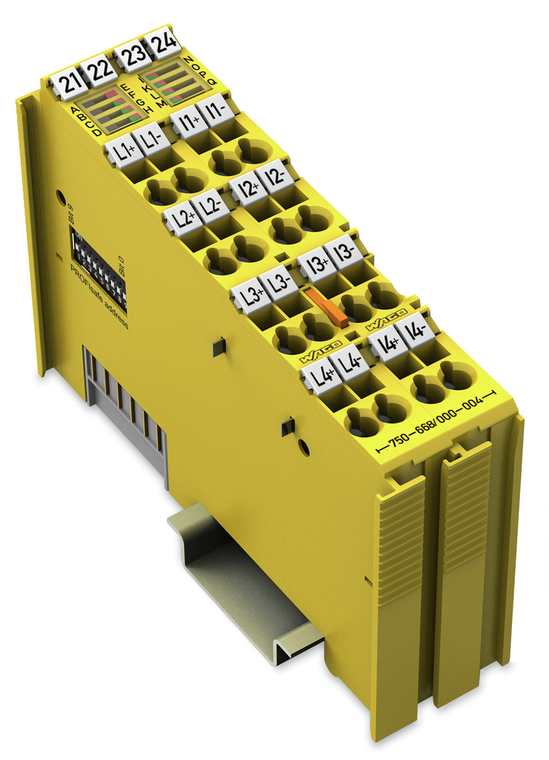

WAGO 750-668/000-004

SKU:

750-668/000-004

UPC:

MPN:

750-668/000-004

Condition:

New

achievable safety classes:

SIL 3: Category 4, PLe (two-channel): SIL 2: Category 2: PLd (one-channel)

color:

Yellow

common mode voltage max:

60 V

configuration options:

PROFIsafe address adjustable via DIP switch or engineering software

conformity marking:

CE

connection technology inputs outputs:

16 x CAGE CLAMP

connection type 1:

Inputs/outputs

country of origin sales organisation germany:

DE

current carrying capacity module:

40 mA

current carrying capacity power jumper contacts:

0.416666666666667

depth:

67.8 mm / 2.669 inch

depth from upper edge of din rail:

60.6 mm / 2.386 inch

emc emission of interference:

Per EN 61000-6-4, marine applications, EN 61000-6-3

emc immunity to interference:

Per EN 61000-6-2, marine applications, EN 61000-6-7 (FS)

exposure to pollutants:

Per IEC 60068-2-42 and IEC 60068-2-43

fine stranded conductor:

0.08 2.5 mm / 28 14 AWG

fire load:

1.292 MJ

height:

100 mm / 3.937 inch

housing material:

Polycarbonate: polyamide 6.6

indicators:

LED (E) red, LED (F-H) red/green: Diagnostics: LED (I-M) red/green: Input/output status

isolation:

500 V system/field

load impedance:

300

measurement error deviation max from the upper range value:

0.0005

measurement error reference temperature:

25 C

mounting position:

Horizontal (standing/lying): vertical

mounting type:

DIN-35 rail

noise rejection at sampling frequency:

38 dB

number of analog inputs:

4

number of incoming power jumper contacts:

2

number of outgoing power jumper contacts:

2

operating altitude:

0 2000 m

output current module:

1.5 A

output current per channel:

1.5 A

packaging type:

Box

pollution degree 5:

2 per IEC 61131-2

power consumption 5 v system supply:

120 mA

power consumption field supply module with no external load:

40 mA

protection type:

IP20

relative humidity without condensation:

0.95

resolution bit:

16 bits

sensor connection:

4 x (2-wire, 3-wire, 4-wire)

sensor supply:

Outputs L1 L4

shock resistance:

15g per IEC 60068-2-27

signal characteristic:

Differential

signal type:

Current

signal type current:

0 20 mA: 4 20 mA

solid conductor:

0.08 2.5 mm / 28 14 AWG

strip length:

8 9 mm / 0.31 0.35 inch

supply voltage field:

24 VDC, SELV/PELV (-15 +30 %): via power jumper contacts (power supply via blade contact: transmission via spring contact)

supply voltage system:

5 VDC: via data contacts

surrounding air temperature operation:

0 55 C

surrounding air temperature storage:

-40 85 C

temperature error max of the upper range value:

0.0065 %/K

total number of channels module:

4

weight:

103.430 g

width:

24 mm / 0.945 inch
