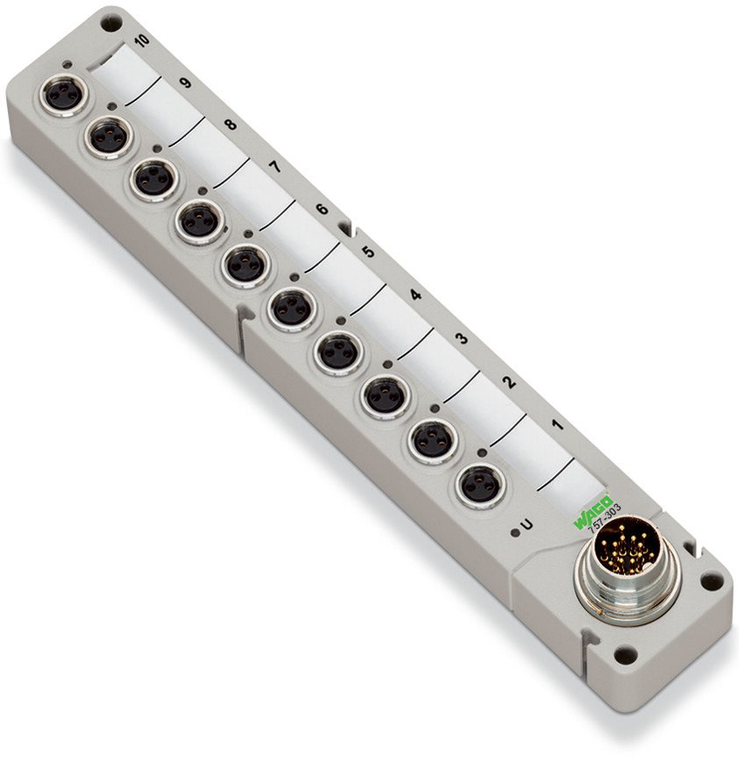

M8 sensor/actuator box; 4-way; 3-pole; M16 connector
- M8 sensor/actuator box, 4-way
- 3-pole (1 signal per contact)
- M16 connector (14ole)
- Green LED operating indicator
- Yellow LED status indicator
- incl. marker strips (note: WMB markers can also be used)
- incl. M8 protective caps (2 pcs)
The WAGO 757 series passive field connection box is designed for sensor and actuator devices, featuring a 3-pole (3P) M8 S/A-Box with 4-port connection capability and a supply voltage range of 10-30Vdc (nominal 12Vdc/24Vdc). It comes in RAL 7035 gray color and includes a 14-pin M16 connector along with four 3-pin M8 connectors. The box supports screw mounting and is rated IP67/NEMA 6/NEMA 6P for protection against environmental factors, with an operational temperature range of -25°C to +80°C. Constructed from Polyamide (PA) 66, it is halogen-free and meets UL 94 V0 standards, equivalent to model 757343.
- connection technology inputs outputs:
- 4 x M8 socket: 3-pole
- connection technology trunk cable:
- 1 x M16 plug: 14-pole
- contact resistance max:
- 0.01
- country of origin sales organisation germany:
- DE
- current carrying capacity signal connections:
- 0.0833333333333333
- current carrying capacity supply connections:
- 0.25
- depth:
- 117 mm / 4.606 inch
- encapsulation:
- Fully encapsulated with conformal coating (UL 94 V0)
- halogen free:
- Yes
- height:
- 26 mm / 1.024 inch
- housing material:
- PA 66 (UL 94 V0): RAL 7035: silicon and halogen free
- indicators:
- LED yellow: Signal status (1 x per contact): LED (U) green: Sensor/actuator box status
- insulation resistance:
- 1000 M
- material properties of the connections:
- Contact: CuSn, nickel base-coat plating and 0.8 m gold-plated: Threaded bush: die-cast Zn, nickel-plated: Seal: Viton: 50 mating cycles
- mounting type:
- Screw mount
- note on protection type:
- Per EN 60529 (NEMA 6 & 6P) in the fully locked position with its plugs or protective caps
- packaging type:
- Box
- pollution degree 5:
- 3 per VDE 0110
- protection type:
- IP67
- rated value of electrical isolation:
- 500 V
- shock resistance:
- Per IEC 60068-2-27
- signal characteristic:
- PNP
- supply voltage:
- 10 30 VDC: Rated voltage: 32 V ~ rms
- surrounding air temperature operation:
- -25 80 C
- vibration resistance:
- Per IEC 60068-2-6
- width:
- 30 mm / 1.181 inch
