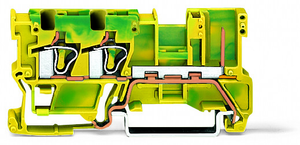

WAGO 769-237 1-conductor/1-pin ground carrier terminal block; for DIN-rail 35 x 15 and 35 x 7.5; 4 mm²; CAGE CLAMP; 4,00 mm²; green-yellow
Wago
$4.32
1-conductor/1-pin ground carrier terminal block; 4 mm²; for DIN-rail 35 x 15 and 35 x 7.5; CAGE CLAMP; 4,00 mm²; green-yellow.
The WAGO 769 X-COM series carrier ground/earthing terminal block is a green-yellow, single-deck component with a center marking slot, designed for grounding/protective-earth applications. It accommodates two wires (one clamp and one plug-in pin) with a nominal cross-section of 4mm², suitable for wire sizes ranging from 0.08mm² to 4mm² or #28AWG to #12AWG. The terminal block features CAGE CLAMP spring connections and plug-in pin connections, and it mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 5mm, equivalent to model 769237.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 28.5 mm / 1.122 inch
- design:
- Horizontal type
- fine stranded conductor:
- 0.08 4 mm / 28 12 AWG
- fire load:
- 0.101 MJ
- flammability class per ul94:
- V0
- height:
- 52.5 mm / 2.067 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center marking
- mounting type:
- DIN-35 rail
- nominal cross section:
- 4 mm
- number of connection points:
- 1
- number of connection points 2:
- 1
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- solid conductor:
- 0.08 4 mm / 28 12 AWG
- strip length:
- 8 9 mm / 0.31 0.35 inch
- weight:
- 6.831 g
- width:
- 5 mm / 0.197 inch
- wiring direction:
- Front-entry wiring
