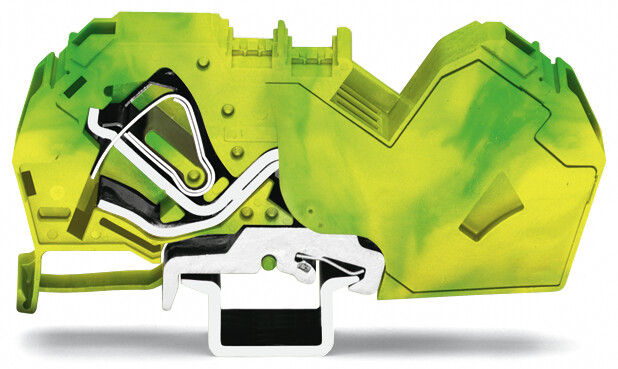

WAGO 785-607
Wago
$39.59
2-conductor ground terminal block35 mm, green-yellow
Connection Data
- Connection technology: CAGE CLAMP<sup></sup>
- Actuation type: Operating tool
- Connectable conductor materials: Copper
- Solid conductor: 6 35 mm / 8 2 AWG
- Strip length: 23 mm / 0.91 inch
- Total number of connection points: 2
- Total number of potentials: 1
- Number of levels: 1
- Type of wiring: Front-entry wiring
Geometrical Data
- Width: 16 mm / 0.63 inch
- Height from upper-edge of DIN-35 rail: 44.5 mm / 1.752 inch
- Depth: 114 mm / 4.488 inch
Mechanical Data
- Design: Angled
- Type of mounting: DIN-35 rail
- Marking level: Center/side marking
Material Data
- Color: green-yellow
- Insulating material: Polyamide 66 (PA 66)
- Fire load: 0.000 MJ
- Weight: 105.000 g
Commercial data
- Packaging type: BOX
- Country of origin: DE
- GTIN: 4045454902650
- Customs Tariff No.: 85369010000
The WAGO 785 TOPJOB Classic series ground/earthing terminal block is a green-yellow, 1-deck/level unit with a built-in end plate, closed on both sides, and features side/lateral and center marking slots. It is designed for grounding/protective-earth (1PE) applications and accommodates two wires (1 clamp + 1 clamp) for wire sizes ranging from 6mm² to 35mm² or #8AWG to #2AWG. The terminal block uses CAGE CLAMP spring connections and mounts on a DIN-35 rail (35 x 15 / 35 x 7.5) with a width of 16mm, equivalent to model 785607.
- actuation type:
- Operating tool
- color:
- Green-yellow
- connectable conductor materials:
- Copper
- connection technology:
- CAGE CLAMP
- country of origin sales organisation germany:
- DE
- depth from upper edge of din rail:
- 44.5 mm / 1.752 inch
- design:
- Angled
- fire load:
- 1.101 MJ
- flammability class per ul94:
- V0
- height:
- 114 mm / 4.488 inch
- insulation material:
- Polyamide (PA66)
- marking level:
- Center/side marking
- mounting type:
- DIN-35 rail
- packaging type:
- Box
- ratings per:
- IEC/EN 60947-7-2
- safety information 1:
- Only suitable for DIN 35 x 15 rail
- solid conductor:
- 6 35 mm / 8 2 AWG
- strip length:
- 23 mm / 0.91 inch
- weight:
- 105.000 g
- width:
- 16 mm / 0.63 inch
- wiring direction:
- Front-entry wiring
