Datasensing MSN/00-1A Sensors
Datasensing
$142.11
The Datasensing MSN/00-1A Sensors are advanced photoelectric sensors designed for precision and reliability in various industrial applications. These sensors feature a polarized function principle with a nominal sensing distance of 3.5 meters, ensuring accurate detection even in challenging environments. The robust construction includes a nickel-plated brass housing and PMMA active head material, providing durability and resistance to harsh conditions.
With a wide range of models available, including diffuse, retro-reflective, polarized, through-beam detection, and background suppression, these sensors offer versatility for different sensing needs. The through-beam models boast a high sensing range, while the retro-reflective models utilize red visible polarized light for enhanced performance. Additionally, models with right-angle optics and fixed distance background suppression are available to suit specific application requirements.
The MSN/00-1A Sensors are equipped with a Decout NPN/PNP selectable output type and NO/NC selectable output function, allowing for flexible integration into existing systems. They operate within a voltage range of 10 to 30VDC, with a no-load supply current of ? 30mA and a load current of ?100mA. The sensors feature a high switching frequency of 80Hz and a rapid response time of 6.25ms, ensuring quick and reliable operation.
Designed with complete protection against electrical damage, these sensors include short-circuit protection with auto-reset, overvoltage protection, and impulsive overvoltage protection. The LED indicators provide clear status output, and the sensors are resistant to interference from external light sources, withstanding up to 3000lux from incandescent lamps and 10000lux from sunlight.
The MSN/00-1A Sensors are CE cURus approved and comply with EMC compatibility standards EN 60947-5-2. They are built to withstand shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards, and offer mechanical protection with an IP67 degree of protection. Supplied with M18 x 1 nuts and a screwdriver, these sensors are easy to install and maintain, making them an ideal choice for demanding industrial environments.
- Nominal sensing distance:
- 3,5m
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Polarized
- Notes:
- On RL110 reflector
- Optic position:
- Axial

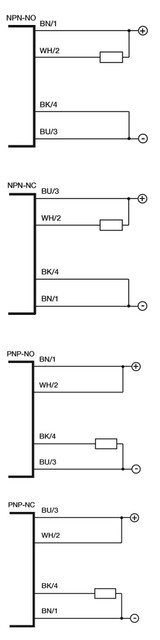

- Output type:
- Decout NPN/PNP Selectable NO/NC Selectable
- Output Function:
- NO/NC Selectable
- Switching frequency:
- 80Hz
- Response time:
- 6,25ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 3000lux (incandescent lamp), 10000lux (sunlight)
- Impulsive Overvoltage Protection:
- Impulsive Overvoltage Protection
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PMMA
- Tightening torque:
- 25Nm
- Operating temperature:
- 25°C..+ 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cURus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1, screwdriver
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
