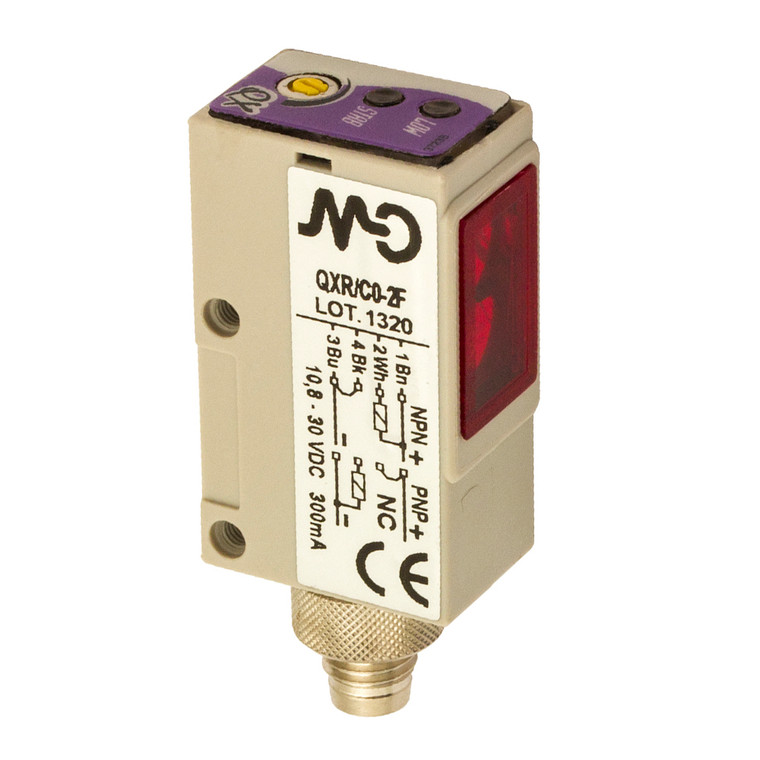

Datasensing QX3/C0-2F Sensors
Datasensing
$177.33
The Datasensing QX3/C0-2F Sensors are advanced photoelectric sensors designed for precision and reliability. Featuring a diffuse reflection function with a nominal sensing distance of 300mm, these sensors are equipped with axial and right-angle optics for versatile application. The sensors boast a fast response time of 0.75-0.5 ms and a high switching frequency of 750Hz, ensuring quick and accurate detection. With NPN-PNP selectable output and a high output current capacity of over 300mA, they are suitable for various industrial environments.
The sensors are built with robust materials, including an ABS housing and an acrylic active head, providing durability and resistance to harsh conditions. They operate efficiently within a temperature range of -25°C to +70°C and are protected against short circuits and reverse polarity. The IP65 mechanical protection rating ensures resistance to dust and water ingress, making them ideal for challenging environments.
Additional features include visible red light in retro-reflective, polarized, and through-beam models, as well as LED indicators for output status and stability. The sensors are designed with a radial 90° optic position and offer a sensitivity adjustment via a trimmer for precise control. They are compatible with M8 plug 4-pin connections and come with ST70 mounting brackets and screws for easy installation. With CE approvals and EMC compatibility, the Datasensing QX3/C0-2F Sensors are a reliable choice for high-performance sensing applications.
- Nominal sensing distance:
- 300mm
- Repeat Accuracy:
- ? 5%
- Sensitivity adjustment:
- Trimmer
- Function Principle:
- Diffuse reflection (medium distance, ?600mm)
- Optic position:
- Radial 90°
- Output type:
- NPN/PNP Selectable NC
- Output Function:
- NC
- Switching frequency:
- 750Hz
- Response time:
- 666µs
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?300mA
- Leakage current:
- ? 100?A @ 30Vdc
- Output voltage drop:
- ?1,2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Red(output status) , Geen (stability)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Infrared (880nm)
- Interference to external light:
- 3000lux Incandescent Lamp, 10000lux
- Dimensions:
- 15x23x51
- Weight:
- 70g
- Connections:
- M8 plug 4pin
- Active Head Material:
- Acrylic
- Operating temperature:
- - 25°C + 70°C ( without freeze)
- Material:
- ABS
- Diameter/Dimension:
- Cubic
- Approvals:
- CE
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-28
- Degree of protection:
- IP65
- Supplied Accessories:
- ST70 mounting brakets and screws
- Dimensions:
- 15x23x40
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP65
