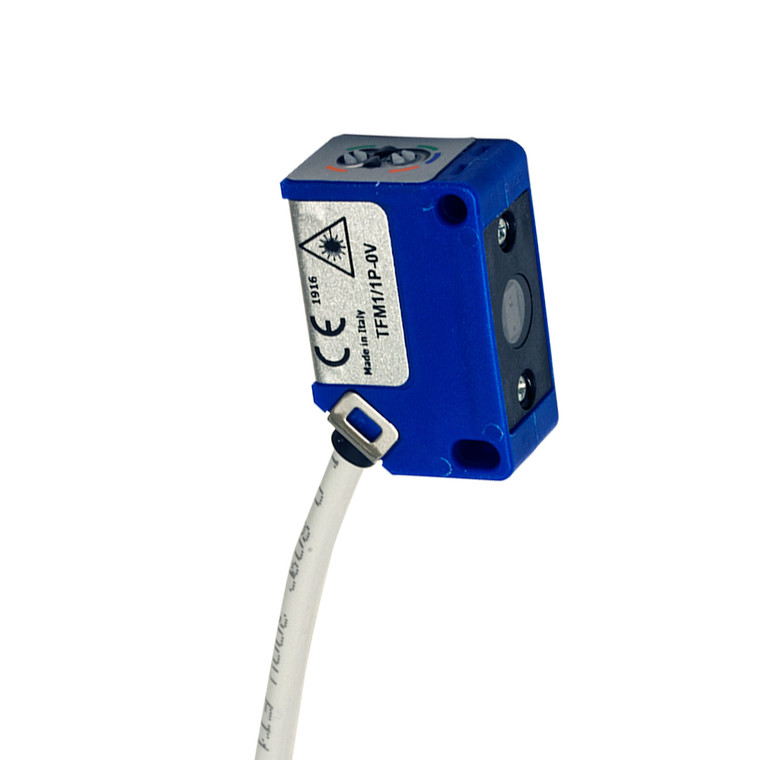

Datasensing TFM1/8P-0V Sensors

The Datasensing TFM1/8P-0V Sensors are advanced time of flight miniaturized sensors designed for precision and reliability. With a nominal sensing distance of 180mm and a wide angle emission of 25°, these sensors offer a resolution of 1mm, making them ideal for applications requiring high accuracy. The sensors feature a programmable switching frequency ranging from 10 Hz to 80 Hz, and are equipped with two digital PNP outputs, providing flexibility in output selection between PNP or Pushpull. Built to withstand challenging environments, the TFM1/8P-0V Sensors boast an IP67 protection degree, ensuring complete protection against electrical damages and mechanical impacts. The sensors are filled with resin for enhanced durability and are equipped with short-circuit and reverse polarity protection. They operate efficiently within a voltage range of 19.2 to 28.8VDC, with a low no-load supply current of ? 40mA and a load current of ? 50mA. The sensors are designed with user-friendly features such as sensitivity adjustment via a trimmer and LED indicators for operational status, including green for run, red for out of range, and yellow for status. The compact dimensions of 13 x 2 x 31.2mm and a robust housing made of PA66 + ABS, with a glass active head, ensure easy integration into various systems. Suitable for a wide range of applications, these sensors operate effectively in temperatures from -10°C to +50°C and can be stored in conditions up to 90°C. They are CE approved and comply with EMC compatibility standards EN 60947-5-2, making them a reliable choice for industrial automation and control systems.
