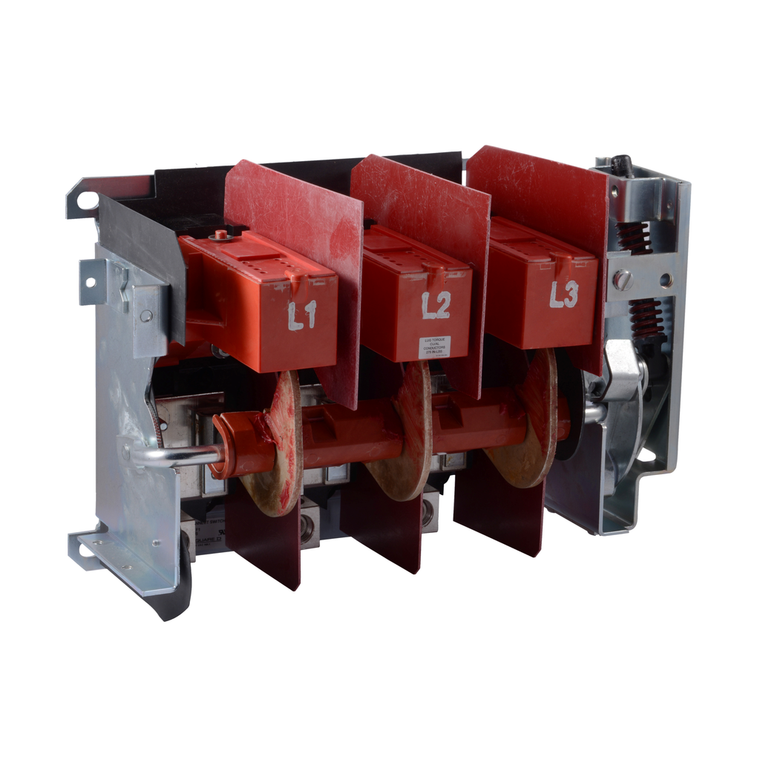

Schneider Electric 9422TF1 Operating mechanism, flange mounted, variable depth, 200A, 600V, no fuse, switch mechanism

Schneider Electric 9422TF1 Operating mechanism, flange mounted, variable depth, 200A, 600V, no fuse, switch mechanism

Schneider Electric
SKU:
9422TF1
$1,462.80
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch is without fuse clips. This 200 A disconnect switch is designed for flange mounting. The variable depth mounting range is 9.12 to 19.25 inches. Disconnect switch has horsepower ratings of 40 HP at 208 VAC, 60 HP at 240 VAC, 125 HP at 480 VAC and 150 HP at 600 VAC. Switch is also rated for 40 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch lugs are rated for #6 AWG to 300 kcmil with copper or aluminum wire. Disconnect switch is UL Component Recognized and CSA certified
Additional Information
Country of Origin:
United States
Mercury Free:
Yes
Disconnector Device Type:
non-fusible disconnect switch
Warranty:
18 months
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Maximum Horse Power Rating:
40 hp 200 V AC || 60 hp 230 V AC || 125 hp 460 V AC || 150 hp 575 V AC || 40 hp 250 V DC
Line Rated Current:
200 A
Pvc Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Mounting:
flange rod variable depth
Eu Rohs Directive:
Compliant with Exemptions
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Range Of Product:
9422T
Rohs Exemption Information:
Yes
Product Or Component Type:
Disconnect Switch
Product Certifications:
UL Recognized || CSA
Provided Equipment:
ordered separately
