Schneider Electric LC1DT406BD IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 4 NO, 24VDC coil, open style
Schneider Electric
$245.70
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

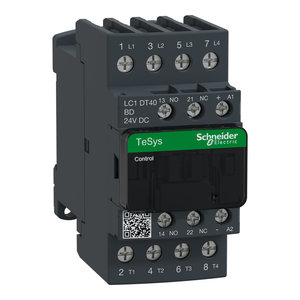

Schneider Electric LC1DT406BD IEC contactor, TeSys Deca, nonreversing, 40A resistive, 4 pole, 4 NO, 24VDC coil, open style
TeSys D contactors have been designed for perfect integration into control systems. They can be used to create motor starters for almost any type of application. TeSys D contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 40A resistive load rating. Contactor is supplied with a 24 VDC coil with transient suppressor module. Contactor has one normally open and one normally closed auxiliary contact built-in as standard. The NC contact is mirror certified. Ring-lug screw terminals are used for load and auxiliary connections. An extensive line of accessories makes it easy to meet the requirements of most applications. The contactor is 3.58 inches tall, 1.77 inches wide and 4.21 inches deep. It weighs 0.94 lbs. Contactor is certified to UL, CSA, IEC, CCC, EAC and Marine standards. Contactor also meets the requirements of RoHS/REACh making it a Green Premium product.
- Protective Cover:
- with
- Maximum Operating Rate:
- 3600 cyc/h 60°C
- Control Circuit Type:
- DC standard
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Weight:
- 0.425 kg
- Width:
- 45 mm
- Compatibility Code:
- LC1D
- Inrush Power In W:
- 5.4-5.4 W 20°C)
- Country of Origin:
- France
- Utilisation Category:
- AC-1 || AC-3 || AC-3e || AC-4
- Eu Rohs Directive:
- Compliant
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Offer Status:
- Green Premium product
- Overvoltage Category:
- III
- Insulation Resistance:
- > 10 MOhm for Signaling circuit
- Hold-In Power Consumption In W:
- 5.4-5.4 W 20°C
- Irms Rated Making Capacity:
- 140 A AC for Signaling circuit conforming to IEC 60947-5-1 || 250 A DC for Signaling circuit conforming to IEC 60947-5-1 || 450 A at 440 V for power circuit conforming to IEC 60947
- Coil Technology:
- built-in bidirectional peak limiting diode suppressor
- Time Constant:
- 28 ms
- Mounting Support:
- rail || plate
- Rated Breaking Capacity:
- 450 A at 440 V for power circuit conforming to IEC 60947
- Contactor Application:
- resistive load
- Circularity Profile:
- ENVEOLI1102030EN
- Environmental Disclosure:
- ENVPEP110230EN
- Auxiliary Contact Composition:
- 1 NO + 1 NC
- Control Circuit Voltage Limits:
- 0.1...0.25 Uc -40-70°C drop-out DC || 0.7...1.25 Uc -40-60°C operational DC || 1...1.25 Uc 60-70°C operational DC
- Product Certifications:
- UL || LROS (Lloyds register of shipping) || BV || CSA || GL || RINA || CCC || GOST || DNV
- Connections - Terminals:
- control circuit: lugs-ring terminals - external diameter: 8 mm || power circuit: lugs-ring terminals - external diameter: 8 mm
- Height:
- 91 mm
- Protective Treatment:
- THIEC 60068-2-30
- Range:
- TeSys || TeSys Deca
- Average Impedance:
- 2 mOhm - Ith 40 A 50 Hz for power circuit
- Device Short Name:
- LC1D
- Ip Degree Of Protection:
- IP20 front face IEC 60529
- Product Or Component Type:
- contactor
- Minimum Switching Current:
- 5 mA for Signaling circuit
- Net Weight:
- 0.425 kg
- Flame Retardance:
- V1 conforming to UL 94
- [Ui] Rated Insulation Voltage:
- power circuit 600 V CSA || power circuit 600 V UL || Signaling circuit 690 V IEC 60947-1 || Signaling circuit 600 V CSA || Signaling circuit 600 V UL || power circuit 690 V IEC 60947-4-1
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947
- [Icw] Rated Short-Time Withstand Current:
- 50 A 40°C - 10 min for power circuit || 120 A 40°C - 1 min for power circuit || 240 A 40°C - 10 s for power circuit || 380 A 40°C - 1 s for power circuit || 100 A - 1 s for Signaling circuit || 120 A - 500 ms for Signaling circuit || 140 A - 100 ms f
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Operating Altitude:
- 0...9842.52 ft (0...3000 m)
- Signaling Circuit Frequency:
- 25...400 Hz
- Non-Overlap Time:
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Safety Reliability Level:
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Pole Contact Composition:
- 4 NO
- Electrical Durability:
- 1.4 Mcycles 40 A AC-1 <= 440 V
- Standards:
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Permissible Ambient Air Temperature Around The Device:
- -40-60°C || 60-70°C with derating
