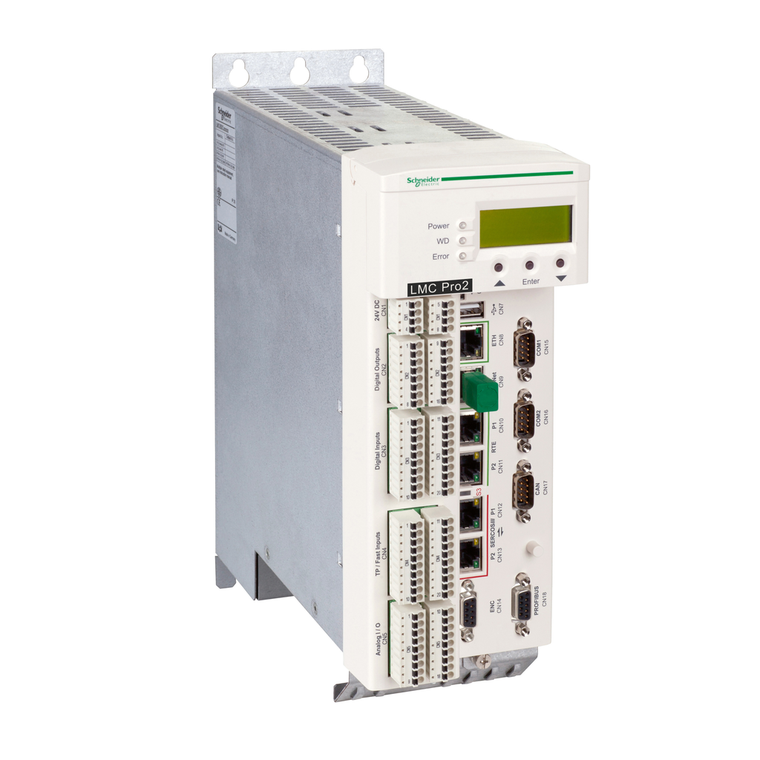

Schneider Electric LMC902CCD10000 Cpu (130 Axis), Om-Ne+Usv

SKU:

LMC902CCD10000

UPC:

3606481814166

MPN:

Condition:

New

Mercury Free:

Yes

Discrete Input Current:

5 mA digital input || 5 mA interrupt input || 5 mA touch probe input

Input Impedance:

100000 Ohm analog input || 500 Ohm

Maximum Number Of I/O Expansion Module:

2

Ip Degree Of Protection:

IP20EN/IEC 60529

Product Certifications:

CE || CSA || cULus || EAC

Integrated Connection Type:

2 Ethernet port RJ45 Sercos || 1 CAN port SUB-D 9 CANopen || 1 USB port USB type A || 2 Ethernet port RJ45 RT-Ethernet (real-time) || 1 Ethernet port RJ45 PacNet || 1 port SUB-D 9 Profibus DP || 1 COM1 serial link SUB-D 9 RS232 || 1 COM2 serial link

Relative Humidity:

5-95 % without condensation

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Discrete Input Number:

20 digital input IEC 61131-2 Type 1 || 4 interrupt input IEC 61131-2 Type 1 || 16 touch probe input IEC 61131-2 Type 1

Power Consumption In W:

36 W

Product Or Component Type:

motion controller

Analogue Input Type:

voltage analog input - 10...10 V || current analog input - 20...20 mA

Ambient Air Temperature For Operation:

5-55 °C

Vibration Resistance:

3.5 mm 5-8.4 Hz || 10 m/s² 8.4-150 Hz

China Rohs Regulation:

X

Depth:

243 mm

[Us] Rated Supply Voltage:

24 V DC

Supply:

power supply 24 VDC, <1 A

Discrete Input Voltage Type:

DC

Sustainable Offer Status:

Green Premium product

Circularity Profile:

ENVEOLI1411004EN

Product Compatibility:

motion controller

Discrete Output Number:

16 digital output || 2 analog output

Standards:

UL 508C || EN/IEC 61131-2 || CSA C22.2 No 274 || CSA C22.2 No 14

Shock Resistance:

150 m/s² 6 ms operation)EN/IEC 60721-3-3

Analogue Input Number:

2

Environmental Disclosure:

ENVPEP1411004EN

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Rohs Exemption Information:

Yes

Height:

310 mm

Analogue Input Resolution:

12 bits

Programming Language:

IL (instruction list) || FBD (function block diagram) || SFC (sequential function chart) || ST (structured text) || CFC (continuous function chart) || LD (ladder)

Number Of Axis:

130

Anti Bounce Filtering:

1 ms or 5 ms configurable digital input || 100 µs touch probe input || 0.1 ms or 1 ms configurable interrupt input

Net Weight:

3.5 kg

Pollution Degree:

2 IEC 61131-2

Range Of Product:

PacDrive 3

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Discrete Output Current:

250 mA digital output

Maximum Leakage Current:

0.4 mA

Width:

100 mm

Discrete Input Voltage:

0...6 V || 20...33 V

Memory Type:

256 kB NVRAM || 1 GB RAM DDR3L
