Schneider Electric ZB5FA334C0 Flmnt White Cap Pbhead Black Mark Arrow
Schneider Electric
$14.41
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

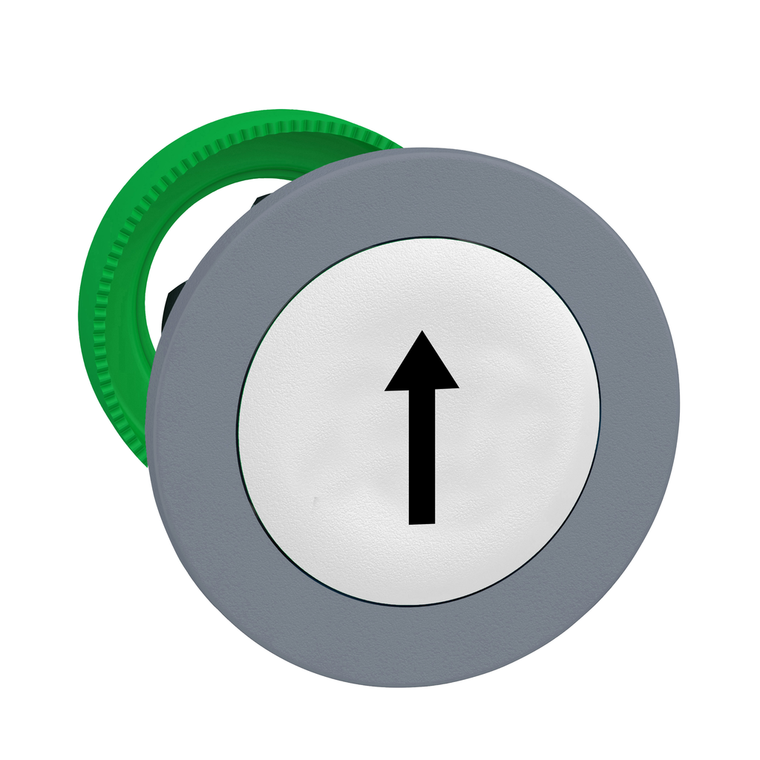

Schneider Electric ZB5FA334C0 Flmnt White Cap Pbhead Black Mark Arrow
This 30.5 mm push-button head provides an ergonomic interface for controlling your machine. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to its clear color and marking. It is vibration resistant, impact resistant, high pressure washer resistant and dust resistant thanks to its IP67, IP66 protection, making it ideal for operation in harsh environments.
- Ambient Air Temperature For Operation:
- -40-70 °C
- Overvoltage Category:
- class II IEC 60536
- Mechanical Durability:
- 10000000 cycles
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Cad Overall Depth:
- 30 mm
- Operator Profile:
- white flush, up arrow black)
- Rohs Exemption Information:
- Yes
- Bezel Material:
- plastic colour plated grey
- Mercury Free:
- Yes
- Range Of Product:
- Harmony XB5
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Head Type:
- built-in-flush
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
- Cad Overall Width:
- 37 mm
- Cad Overall Height:
- 37 mm
- Product Certifications:
- UL Listed || CSA
- Warranty:
- 18 months
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Net Weight:
- 0.03 kg
- Type Of Operator:
- spring return
- Shape Of Signaling Unit Head:
- round
- China Rohs Regulation:
- X
- Product Or Component Type:
- head for non-illuminated push-button
- Ik Degree Of Protection:
- IK03 IEC 50102
- Electrical Composition Code:
- C1 9 single front mounting || C2 9 single and double front mounting || C11 3 single front mounting || C15 1 single front mounting || SF1 3 single front mounting
- Device Short Name:
- ZB5F
- Product Compatibility:
- ZBYF... || ZBZF32 || ZBZF33 || ZB5AZ
- Vibration Resistance:
- 5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 1
- Device Presentation:
- basic element
- Mounting Diameter:
- 30.5 mm
- Protective Treatment:
- TH
- Datasheet:
- View
