Datasensing AT1/CP-3A86 Sensors

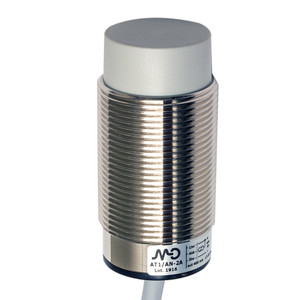

The Datasensing AT1/CP-3A86 is a high-performance inductive sensor designed for precision and reliability. Featuring an M30 shielded design, this sensor operates with a normally closed (NC) PNP output and is equipped with a 5-meter axial PVC cable for versatile installation. It boasts a nominal sensing distance of 15mm and an operating range of 0 to 12.1mm, making it ideal for detecting standard targets of 45x45mm FE360. The sensor's correction factors accommodate various materials, including copper (0.35), aluminum (0.45), brass (0.50), and stainless steel (0.70), ensuring accurate performance across different applications. Engineered for durability, the AT1/CP-3A86 features a nickel-plated brass housing and an active head made of PBT, providing robust protection against environmental factors. It operates within a voltage range of 10 to 30Vdc, with a no-load supply current of ? 20mA and a load current capacity of ? 400mA. The sensor's output voltage drop is minimal at ? 1V @400mA, and it includes essential protections such as short-circuit, reverse polarity, impulsive overvoltage, and protection against inductive loads. With a switching frequency of 200Hz and a repeat accuracy of < 5% (UB 24V Ta=23°C ±5°C), this sensor ensures consistent and reliable performance. The yellow LED indicator provides a clear output state, while the device's mechanical protection is rated at IP67, making it suitable for harsh environments. The AT1/CP-3A86 is CE and UR approved, with EMC compatibility per IEC 60947-5-2 standards, and is resistant to shocks and vibrations as per IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M30x1.5 nuts, this sensor is ready for immediate integration into your system.
