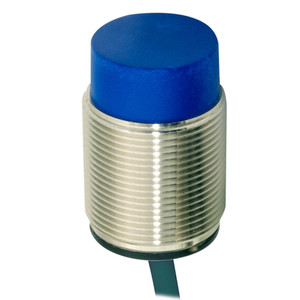

Datasensing AT6/AN-2A Sensors
Datasensing
$57.42
The Datasensing AT6/AN-2A Sensors are high-performance inductive sensors designed for precision and reliability in various industrial applications. Featuring an M30 unshielded short housing, these sensors offer a nominal sensing distance of 15mm and an operating distance of 0 to 12.1mm, making them ideal for proximity detection tasks. The sensors are equipped with a 2m axial cable for easy installation and connectivity.
Built with a robust nickel-plated brass housing and a PBT active head, the AT6/AN-2A sensors ensure durability and long-lasting performance. They are designed to withstand harsh environments with an operating temperature range of -25°C to +70°C and a high degree of protection rated at IP67. The sensors are also equipped with comprehensive electrical protections, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation.
The AT6/AN-2A sensors feature an NPN output type with a normally open (NO) output function, capable of handling a load current of up to 400mA. With a switching frequency of 200Hz and a repeat accuracy of less than 5%, these sensors provide fast and accurate response times. The yellow LED indicator provides a clear visual indication of the output state, enhancing operational efficiency.
These sensors are compatible with a wide range of materials, with correction factors for copper, aluminum, brass, and stainless steel, ensuring versatile application across different surfaces. The AT6/AN-2A sensors are CE and cULus approved, meeting international standards for safety and performance. Additionally, ATEX models for category 3 environments are available upon request, catering to specialized industrial needs.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,44 / aluminium: 0,49 / brass: 0,53 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 short case no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 200Hz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 20mA
- Load current:
- ? 400mA
- Leakage current:
- ? 10?A
- Output voltage drop:
- ? 1V @400mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 165g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC Cable
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
