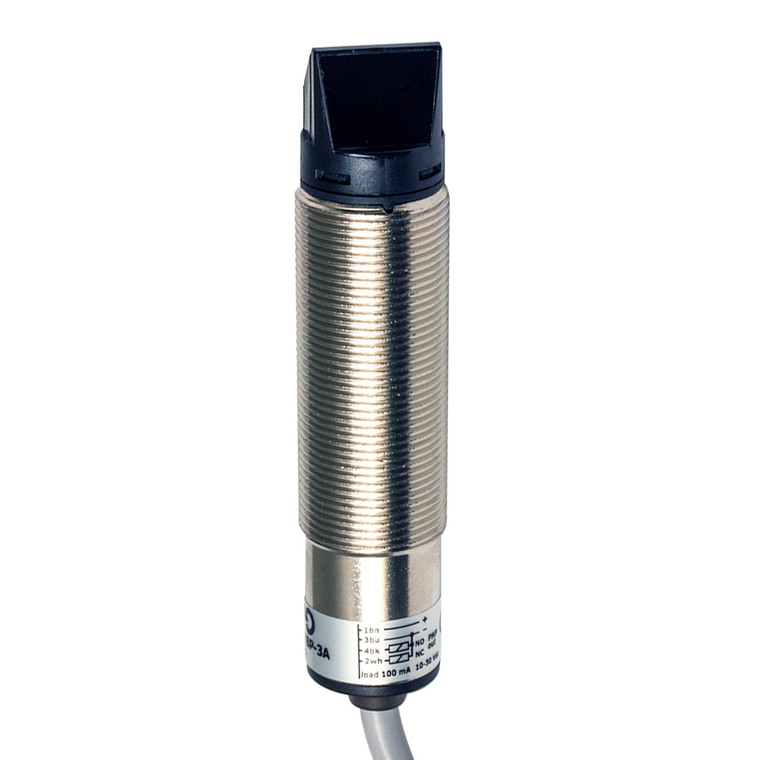

The Datasensing FAR2/BN-3A Sensors are advanced photoelectric sensors designed for precise and reliable detection. Featuring a 90° diffuse reflection principle, these sensors offer a nominal sensing distance of 100mm, making them ideal for short-distance applications. The robust construction includes a nickel-plated brass housing with a PC cable exit, ensuring durability and resistance to harsh environments. With an IP67 protection rating, these sensors are safeguarded against dust and water ingress, making them suitable for industrial settings.
Equipped with NPN NO+NC output types, the FAR2/BN-3A sensors provide versatile switching options. They operate efficiently within a voltage range of 10
30VDC, with a low no-load supply current of ?30mA. The sensors feature a high switching frequency of 250Hz and a rapid response time of 2ms, ensuring quick and accurate performance. Additionally, they are protected against short circuits, overvoltage, and reverse polarity, enhancing their reliability and longevity.
The sensors are designed with user convenience in mind, featuring LED indicators for easy status monitoring. They are capable of withstanding external light interference up to 5000lux from incandescent lamps and 10000lux from sunlight. The compact M18 x 1 dimensions and lightweight design (130g) allow for easy installation and integration into various systems. Approved by CE and cULus, the Datasensing FAR2/BN-3A Sensors meet stringent safety and quality standards, making them a dependable choice for your sensing needs.
- Nominal sensing distance:
- 100mm
- Thermal drift of Sr:
- ?10% Sr
- Repeat Accuracy:
- 5%
- Sensitivity adjustment:
- No
- Function Principle:
- Diffuse reflection (short distance, ?200mm)
- Notes:
- white target Kodak 90% 100 x 100mm
- Optic position:
- Radial 90°
- Output type:
- NPN NO+NC
- Output Function:
- NO+NC
- Switching frequency:
- 250Hz
- Response time:
- 2ms
- Operating Voltage:
- 10 30VDC
- No-Load supply current:
- ? 30mA
- Load current:
- ?100mA
- Leakage current:
- ?10?A
- Output voltage drop:
- ?2V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (Lon) or output status Lo/Do
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Short circuit (autoreset), Overvoltage
- Reverse Polarity Protection:
- Polarity inversal, Inpulsive voltage
- Emission:
- LED Red (660nm)
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 130g
- Housing Material:
- Nickel plated brass / PC cable exit
- Connections:
- 2m PVC cable
- Active Head Material:
- PC
- Tightening torque:
- 25Nm
- Operating temperature:
- - 25°C + 70° C (Without freeze)
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- EN 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- nuts M18 x 1
- Operating Temperature:
- - 25°C + 70°C (Without freeze)
- Mechanical Protection:
- IP67
