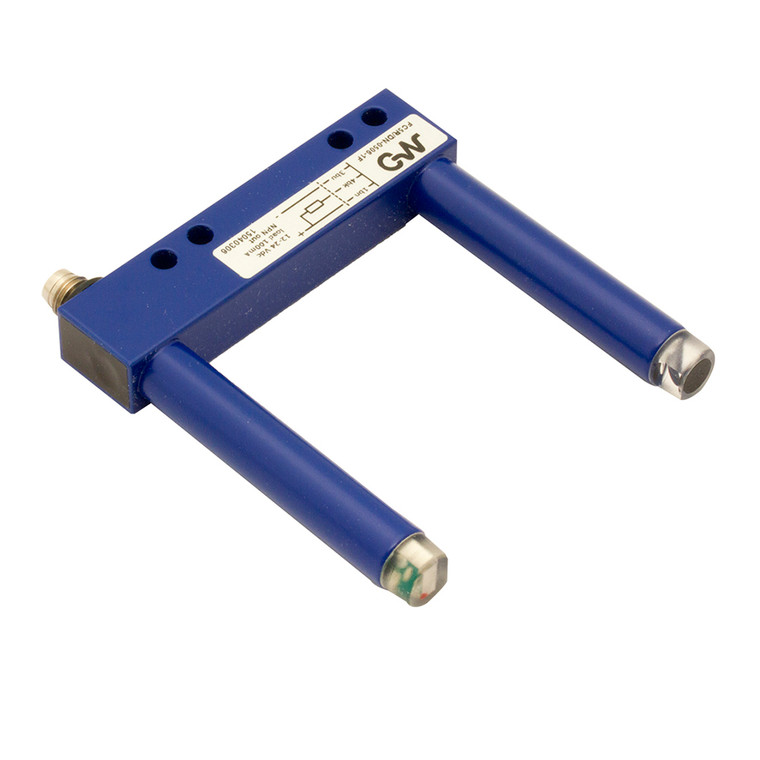

Datasensing FC5R/DN-0303-1F Sensors
Datasensing
$166.48
The Datasensing FC5R/DN-0303-1F Sensors are designed for precision and reliability, featuring a 30mm width and 40mm depth slot sensor with a high-power RED LED emission. This photoelectric slot sensor operates on a 12..24Vdc power supply and offers an NPN-NO output type. With a robust metal housing and a compact design, it is capable of detecting objects as small as 0.8mm. The sensor is equipped with a high visibility LED indicator and a switching frequency of 4 KHz, ensuring quick and accurate detection. It operates efficiently within a temperature range of -10°C to +60°C and is protected against short-circuits and reverse polarity. The M8 connector with 3 pins allows for easy installation, and the sensor is compliant with CE and UL standards, offering IP67 mechanical protection. Ideal for environments with external light interference, it can withstand up to 5000lux from incandescent lamps and 10000lux from sunlight. The painted aluminium housing and polyamide/glass active head material ensure durability and longevity, making it a reliable choice for various industrial applications.
- Nominal sensing distance:
- 30mm
- minimum detectable object:
- 0,8mm
- Si:
- Yes
- Sensitivity adjustment:
- No
- Function Principle:
- Photoelectric slot
- Output type:
- NPN Don
- Output Function:
- Don
- Switching frequency:
- 4kHz
- Response time:
- 125µs
- Operating Voltage:
- 12...24VDC
- No-Load supply current:
- ? 20mA
- Load current:
- ?100mA
- Output voltage drop:
- ?1,5V@Iload=100mA
- Max ripple content:
- ?10%
- LED indicators:
- Yellow (status output)
- Time delay before availability:
- ?200ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Emission:
- LED Red
- Interference to external light:
- 5000lux (incandescent lamp), 10000lux (sunlight)
- Weight:
- 66g
- Housing Material:
- Painted aluminium
- Connections:
- M8 plug 3pin
- Active Head Material:
- Polyamide/glass
- Operating temperature:
- - 10°C + 60°C
- Storage temperature:
- - 40°C + 80°C
- Width slot detection:
- 30mm
- Depth slot detection:
- 40mm
- Approvals:
- CE UL
- EMC compatibility:
- EN 60947-5-2
- Degree of protection:
- IP67
- Operating Temperature:
- - 10°C + 60°C (Without freeze)
- Mechanical Protection:
- IP67
