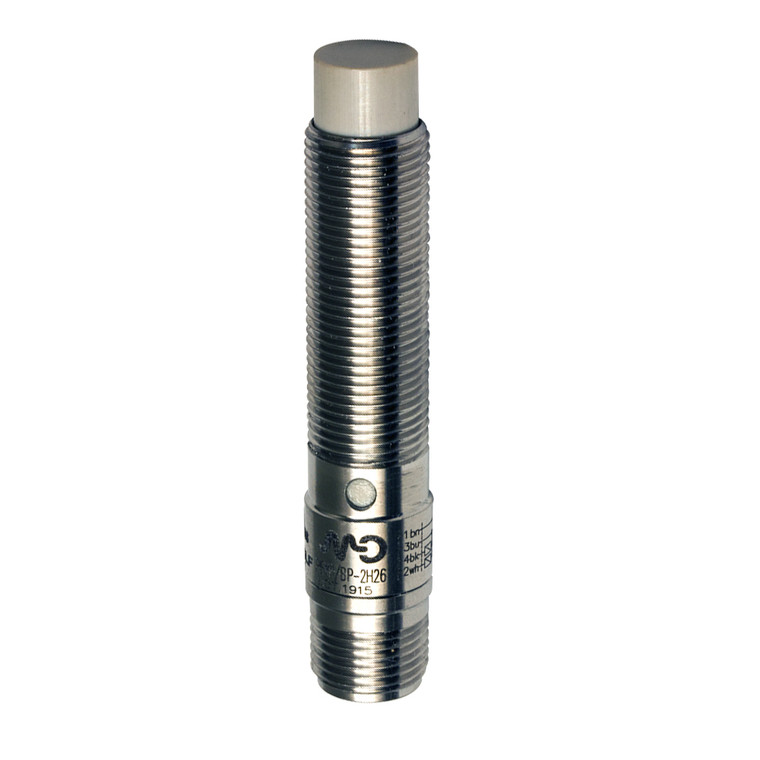

Datasensing PFM1/AN-2H Sensors
Datasensing
$72.47
The Datasensing PFM1/AN-2H Sensors are designed for precision and durability, featuring an M12 unshielded standard NO/NPN connection. Encased in robust AISI 316L stainless steel, these sensors offer exceptional protection with IP67, IP68, and IP69K ratings, making them suitable for harsh environments. The LED status indicator provides clear operational feedback, while the sensor's advanced protection mechanisms guard against electrical damages, short-circuits, reverse polarity, and impulsive overvoltage. With a nominal sensing distance of 4mm and a high switching frequency of 2kHz, these sensors ensure reliable performance. They are compatible with a range of materials, offering correction factors for copper, aluminum, brass, and stainless steel. The sensors operate efficiently within a voltage range of 10 to 30Vdc, with minimal power consumption. Designed for versatility, they can withstand extreme temperatures from -40°C to +80°C, with short exposure tolerance up to 100°C. The package includes two M12x1 nuts for easy installation. Ideal for applications requiring high precision and resilience, the Datasensing PFM1/AN-2H Sensors are CE, cULus, ECOLAB, and DIVERSEY approved, ensuring compliance with international standards.
- Nominal sensing distance:
- 4mm
- Operanting distance:
- 0 3,24mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,33 / aluminium: 0,40 / brass: 0,50 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard no-flush mount
- Functions:
- Proximity
- Output type:
- NPN
- Output Function:
- NO
- Switching frequency:
- 2kHz
- Operating Voltage:
- 10...30Vdc
- No-Load supply current:
- ? 15mA
- Load current:
- ? 200mA
- Leakage current:
- ? 15?A
- Output voltage drop:
- ? 2V @200mA
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 50ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Protection against inductive loads:
- Yes
- Mounting:
- Unshielded
- Weight:
- 30g
- Housing Material:
- AISI316L Stainless Steel
- Connections:
- M12 Plug
- Active Head Material:
- PPS
- Tightening torque:
- 25Nm
- Material:
- AISI316L Stainless Steel
- Diameter/Dimension:
- M12
- Approvals:
- CE cULus ECOLAB DIVERSEY
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP68, IP69K
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
