Schneider Electric 8903LG1200V02 Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1
Schneider Electric
$1,529.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric 8903LG1200V02 Contactor, Type L, multipole lighting, electrically held, 30A, 12 pole, 600V, 110/120VAC 50/60Hz coil, NEMA 1

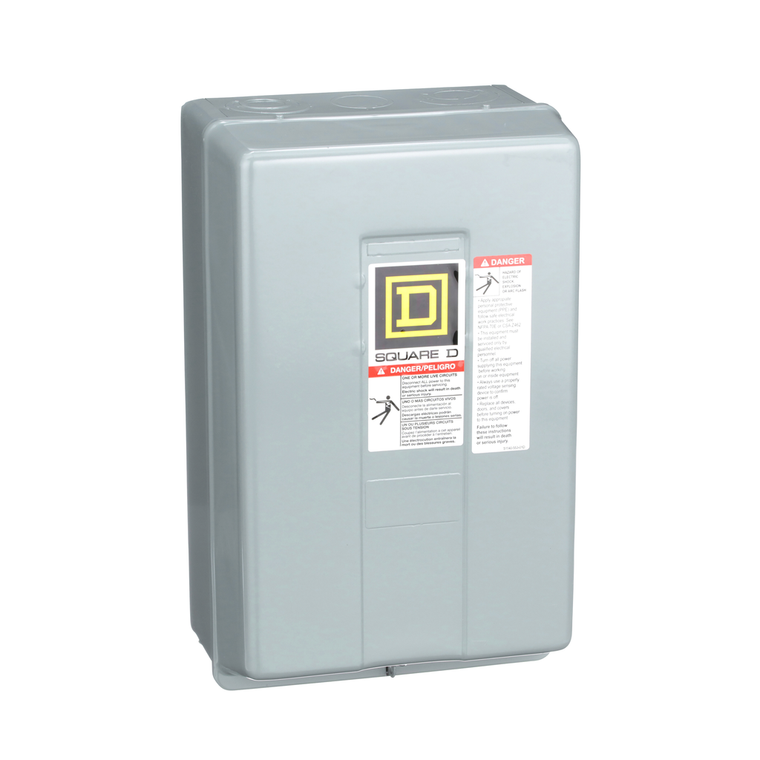

8903L multipole lighting contactors are for lighting control applications. 8903L lighting contactors are available in either mechanically held or electrically held versions. This is an electrically held device. Can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The contacts are field convertible from NO to NC. This device 12 pole device has 12 NO contacts. Supplied with a 110/120 VAC 50/60 Hz interchangeable operating coil but other coils are available in a wide variety of common voltages up to 600VAC. Contactor is in a NEMA 1 painted sheet steel enclosure, but a variety of other enclosure types are available. Coil and contacts are easily replaced. Enclosure is 12.69 inches tall, 7.81 inches wide and 6.03 inches deep. 8903L lighting contactors are UL Listed and CSA Certified.
- Hold-In Power Consumption In Va:
- 35-35 VA 60 Hz || 35-35 VA 50 Hz
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Country of Origin:
- Mexico
- Net Weight:
- 4.99 kg
- Inrush Power In Va:
- 180-180 VA 60 Hz || 170-170 VA 50 Hz
- Halogen Content Performance:
- Halogen free plastic parts product
- Range Of Product:
- 8903L
- Environmental Disclosure:
- ENVPEP1407018EN
- Depth:
- 153 mm
- Rohs Exemption Information:
- Yes
- Control Circuit:
- separate control circuit
- Warranty:
- 18 months
- Line Rated Current:
- 20-20 A tungsten || 30-30 A fluorescent
- Toxic Heavy Metal Free:
- Yes
- Electrical Connection:
- screw-clamp terminals
- Product Certifications:
- UL Listed || CSA
- [Uc] Control Circuit Voltage:
- 110 V AC 50 Hz || 120 V AC 60 Hz
- Mercury Free:
- Yes
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Product Or Component Type:
- Electrically Held Lighting Contactor
- Circularity Profile:
- N/A
- Control Type:
- no control units
- Pvc Free:
- Yes
- Reach Free Of Svhc:
- Yes
- Poles Description:
- 12P 12 NO
- Weight:
- 4.99 kg
- Sustainable Offer Status:
- Green Premium product
- Local Signaling:
- no indicator
- Eu Rohs Directive:
- Compliant
- Nema Degree Of Protection:
- NEMA 1 painted sheet steel surface
