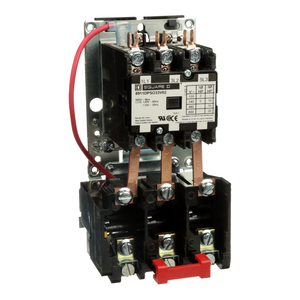

Schneider Electric 8911DPSO23V02 NEMA starter, Definite Purpose, 25A, 20HP at 600VAC, 3 phase, 3 pole, melting alloy, 120VAC coil, open

(No reviews yet) Write a Review
SKU:
8911DPSO23V02
MPN:
8911DPSO23V02
Condition:
New
Nema Degree Of Protection:
not rated (open device)
Mercury Free:
Yes
Line Rated Current:
25 A
Range Of Product:
DPS
Number Of Thermal Units Required:
3
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Warranty:
18 months
Maximum Horse Power Rating:
2-2 hp 115 V AC, 1 phase || 5-5 hp 230 V AC, 1 phase || 10-10 hp 230 V AC, 3 phase || 15-15 hp 460 V AC, 3 phase || 20-20 hp 575 V AC, 3 phase
[Ue] Rated Operational Voltage:
600 V AC
Thermal Overload Type:
melting alloy
Product Or Component Type:
Definite Purpose Starter
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Uc] Control Circuit Voltage:
110 V AC 50 Hz || 120 V AC 60 Hz
Phase:
3 phase
Poles Description:
3P
Locked Rotor Rated Current:
150 A 230 V AC || 125 A 460 V AC || 100 A 575 V AC
Eu Rohs Directive:
Compliant with Exemptions
Country of Origin:
United States
$346.08

Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 25 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. It has a 10 HP at 230 VAC, 15 HP at 460 VAC and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This definite purpose contactor is an open device without an enclosure. Enclosure is 6.73 inches tall, 3.50 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
