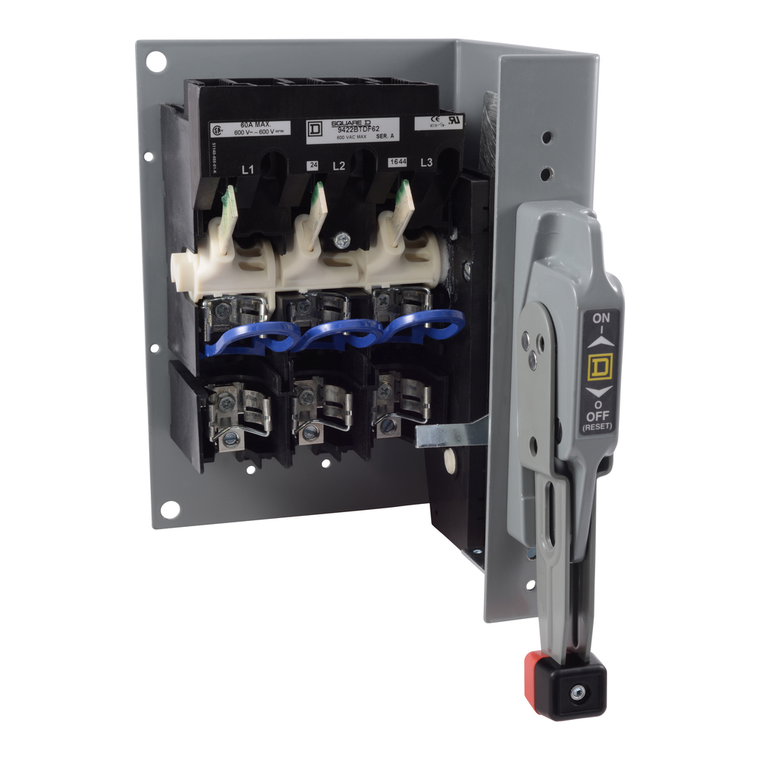

Schneider Electric 9422BTDF62 Operating mechanism, flange mounted, fixed depth assembly, 60A, 600 V, fuseholder, switch mechanism, 6 inch handle

Schneider Electric 9422BTDF62 Operating mechanism, flange mounted, fixed depth assembly, 60A, 600 V, fuseholder, switch mechanism, 6 inch handle

Schneider Electric
SKU:
9422BTDF62
$737.90
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch will accept Class J fuses only. It has a rating of 60 Amps up to 600 V. This bracket mount mount disconnect switch is rated at 60 A. Disconnect switch has horsepower ratings of 15 HP at 208 VAC, 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 600 VDC. Disconnect switch lugs are rated for #14 AWG to #2 AWG copper or aluminum wire. Switch is UL component recognized and CSA certified.
Additional Information
Range Of Product:
9422T
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Pvc Free:
Yes
Product Mounting:
bracket fixed depth
Line Rated Current:
60 A
Maximum Horse Power Rating:
15 hp 200 V AC || 15 hp 230 V AC || 30 hp 460 V AC || 50 hp 575 V AC || 10 hp 250 V DC
Fuse Type:
J
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Disconnector Device Type:
fusible disconnect switch
Country of Origin:
Mexico
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
Disconnect Switch
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Product Certifications:
UL Recognized || CSA
Provided Equipment:
6 in handle included
Associated Fuse Rating:
60 A 600 V
Warranty:
18 months
Eu Rohs Directive:
Compliant with Exemptions
