Schneider Electric

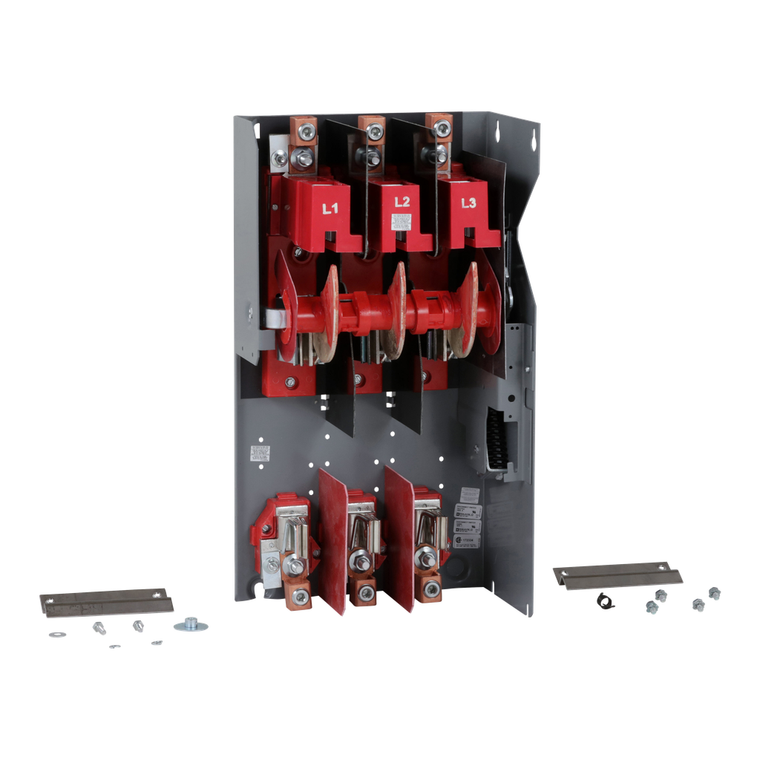

Schneider Electric 9422TG2 Operating mechanism, flange mounted, variable depth, 400A, 600V, H, K, J, R fuseholder, switch mechanism

(No reviews yet) Write a Review
SKU:
9422TG2
MPN:
9422TG2
Condition:
New
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Fuse Type:
R || K || J || H
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive:
Compliant with Exemptions
Range Of Product:
9422T
Maximum Horse Power Rating:
75 hp 200 V AC || 125 hp 230 V AC || 250 hp 460 V AC || 350 hp 575 V AC || 50 hp 250 V DC
Mercury Free:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product Or Component Type:
Disconnect Switch
Pvc Free:
Yes
Associated Fuse Rating:
400 A 250/600 V
Rohs Exemption Information:
Yes
Disconnector Device Type:
fusible disconnect switch
Line Rated Current:
400 A
Warranty:
18 months
Product Mounting:
flange rod variable depth
Product Certifications:
UL Recognized || CSA
Country of Origin:
United States
Provided Equipment:
ordered separately
$3,550.70

Description

9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. This 400 A disconnect switch is designed for right flange mounting. This 400 A disconnect switch is designed for flange mounting. The variable depth mounting range is 11.38 inches. Disconnect switch has horsepower ratings of 75 HP at 208 VAC, 125 HP at 240 VAC, 250 HP at 480 VAC and 350 HP at 600 VAC. Switch is also rated for 50 HP at 250 VDC and 50 HP at 600 VDC when using two poles. This disconnect switch uses 9422A operating handles. Handle is to be ordered seoparately. Disconnect switch is UL Component Recognized and CSA certified
