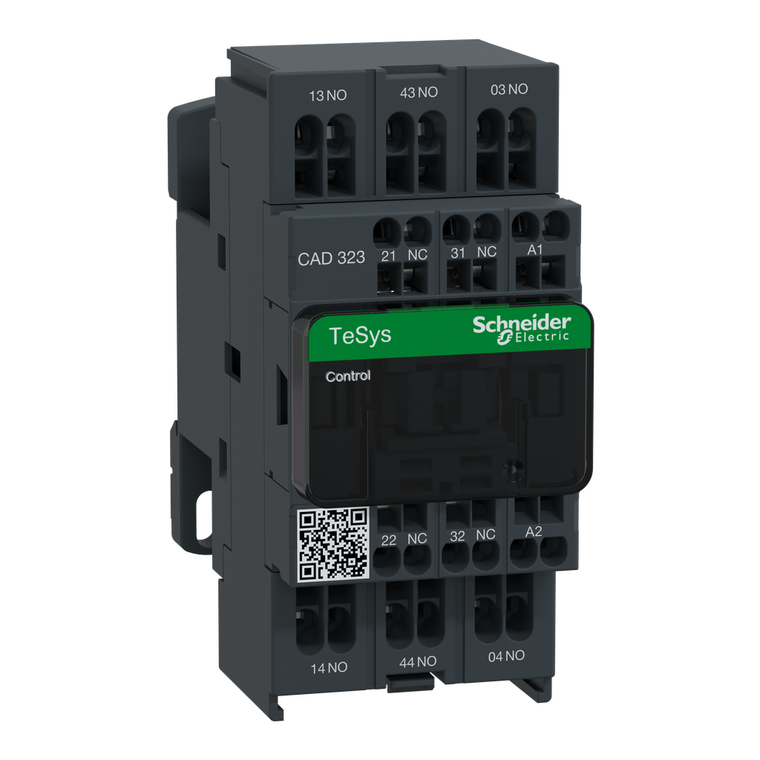

Schneider Electric CAD323B7 TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 24 V AC standard coil

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric CAD323B7 TeSys Deca control relay - 3 NO + 2 NC - <= 690 V - 24 V AC standard coil

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

CAD323B7

UPC:

MPN:

CAD323B7

Condition:

New

Irms Rated Making Capacity:

140 A AC IEC 60947-5-1 || 250 A DC IEC 60947-5-1

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Operation:

-40-60°C || 60-70°C with derating

Product Certifications:

CB || CCC || UL || CSA || EAC || CE || UKCA

Ip Degree Of Protection:

IP2X front face VDE 0106

Inrush Power In Va:

70-70 VA 50 Hz (at 20°C)

[Ue] Rated Operational Voltage:

<= 690 V AC 25...400 Hz

Minimum Switching Voltage:

17 V

Operating Altitude:

0...9842.52 ft (0...3000 m)

Mercury Free:

Yes

Standards:

EN/IEC 60947-5-1 || GB/T 14048.5 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || JIS C8201-5-1

Depth:

84 mm

Mechanical Robustness:

shocks control relay open10 Gn for 11 ms IEC 60068-2-27 || shocks control relay closed15 Gn for 11 ms IEC 60068-2-27 || vibrations control relay open2 Gn, 5...300 Hz IEC 60068-2-6 || vibrations control relay closed4 Gn, 5...300 Hz IEC 60068-2-6

Product Name:

TeSys CAD

Control Circuit Type:

AC 50/60 Hz

Hold-In Power Consumption In Va:

8-8 VA 50 Hz (at 20°C)

Device Short Name:

CAD

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Uc] Control Circuit Voltage:

24 V AC 50/60 Hz

Range:

TeSys || TeSys Deca

Warranty:

18 months

Pole Contact Composition:

3 NO + 2 NC

Mounting Support:

rail || plate

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947

[Ith] Conventional Free Air Thermal Current:

10 A (at 60°C)

Weight:

0.58 kg

Net Weight:

0.58 kg

Connections - Terminals:

spring terminals 1 1-2.5 mm²flexible without cable end || spring terminals 2 1-2.5 mm²flexible without cable end || spring terminals 1 1-2.5 mm²solid without cable end || spring terminals 2 1-2.5 mm²solid without cable end

[Icw] Rated Short-Time Withstand Current:

100 A - 1 s || 120 A - 500 ms || 140 A - 100 ms

Circularity Profile:

ENVEOLI1501004

Contactor Application:

control circuit

[Ui] Rated Insulation Voltage:

600 V UL || 600 V CSA || 690 V IEC 60947-5-1

Minimum Switching Current:

5 mA

Control Circuit Voltage Limits:

0.3...0.6 Uc -40-70°C drop-out AC 50/60 Hz || 0.8...1.1 Uc -40-60°C operational AC 50 Hz || 0.85...1.1 Uc -40-60°C operational AC 60 Hz || 1...1.1 Uc 60-70°C operational AC 50/60 Hz

Mechanical Durability:

30 Mcycles

Product Or Component Type:

control relay

Maximum Operating Rate:

180 cyc/mn

Rohs Exemption Information:

Yes

Non-Overlap Time:

1.5 ms on energisation between NC and NO contact || 1.5 ms on de-energisation between NC and NO contact

Environmental Disclosure:

ENVPEP1501004

Sustainable Offer Status:

Green Premium product

Country of Origin:

France

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Protective Treatment:

TH IEC 60068

Eu Rohs Directive:

Compliant with Exemptions

Associated Fuse Rating:

10 A gG conforming to IEC 60947-5-1
