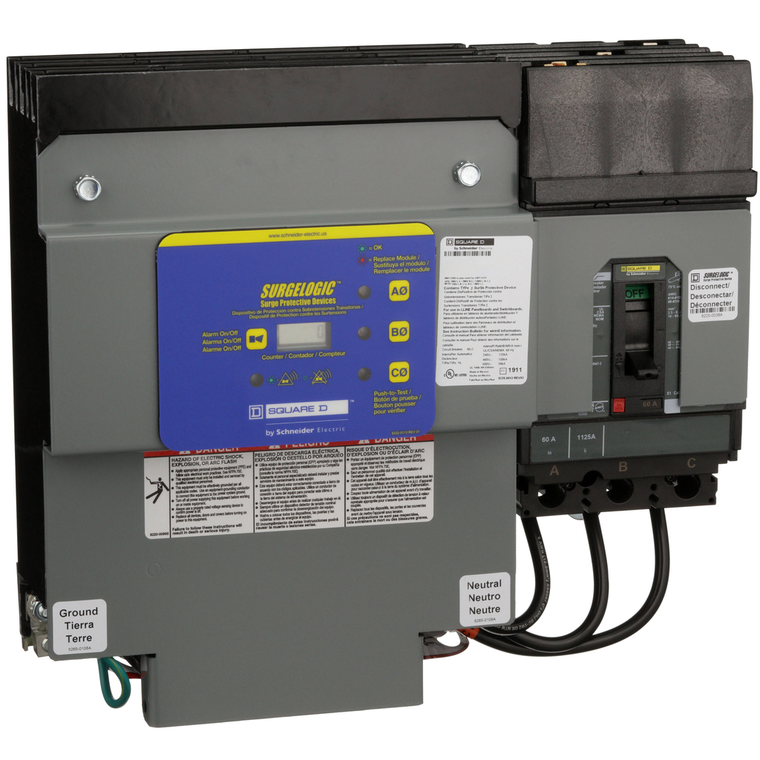

Schneider Electric HL2IMA16C1 Surge protection device, Surgelogic, HL, 160kA, 208Y/120VAC, 3 phase, 4 wire, SPD type 1

(No reviews yet) Write a Review
SKU:
HL2IMA16C1
MPN:
HL2IMA16C1
Condition:
New
Country of Origin:
Mexico
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Breaking Capacity Code:
HL
[Uc] Maximum Continuous Operating Voltage:
150 V
Cable Length:
483 mm
Local Signaling:
status LED green per phase normal operation || status LED red per phase fault
Length:
483 mm
Eu Rohs Directive:
Compliant with Exemptions
Nema Degree Of Protection:
NEMA 1
Trip Unit Technology:
thermal-magnetic
Phase:
3 phase
[Ue] Rated Operational Voltage:
208Y/120 V AC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Number Of Poles:
3
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Line Rated Current:
60 A
Surge Current:
160 kA
Wiring Configuration:
4-wire
Rohs Exemption Information:
Yes
Short-Circuit Protection:
200 kA
Provided Equipment:
alarm enable/disable switch || surge counter || circuit-breaker
Range Of Product:
Surgelogic
Depth:
142.1 mm
Connections - Terminals:
I-Line line || lugs ground AWG 6 copper 4 N.m || lugs neutral AWG 6 copper 4 N.m
Mounting Support:
panel mounting
Standards:
UL 1449:ed. 3 || CSA C22.2 No 8:1986 || UL 96A:ed. 12 || UL 489:ed. 11 || CSA C22.2 No 5-09
Product Or Component Type:
surge protection device
Device Short Name:
IMA
Breaking Capacity:
50 kA
$10,872.00

Description

Surgelogic™ internally mounted surge protection devices delivers specification grade performance for service entrance or critical branch I-Line panel applications. These multiphase systems provide suppression, enchanced EFI/RFI filtering for all critical modes inside electrical equipment, and shorter lead lengths with superior SPD performance. They provide better performance with a diagnostic interface with push to test diagnostic switches, red and green status LEDs, module status LEDs per mode, dry contacts, audible alarm with disable switch, and a surge counter. These products have a 10 year product warranty and 10 modes of protection. This surge protection device is 3 phase, 4-wire + ground, 208Y/277 V, 50 kA breaking capacity, 160 kA surge current, and short circuit current rating of 200 kA. The device is engineered to UL 489 11th Edition, type 2 SPD and complies with UL 96A 12th Edition Master Label for Lightning Protection Systems.
