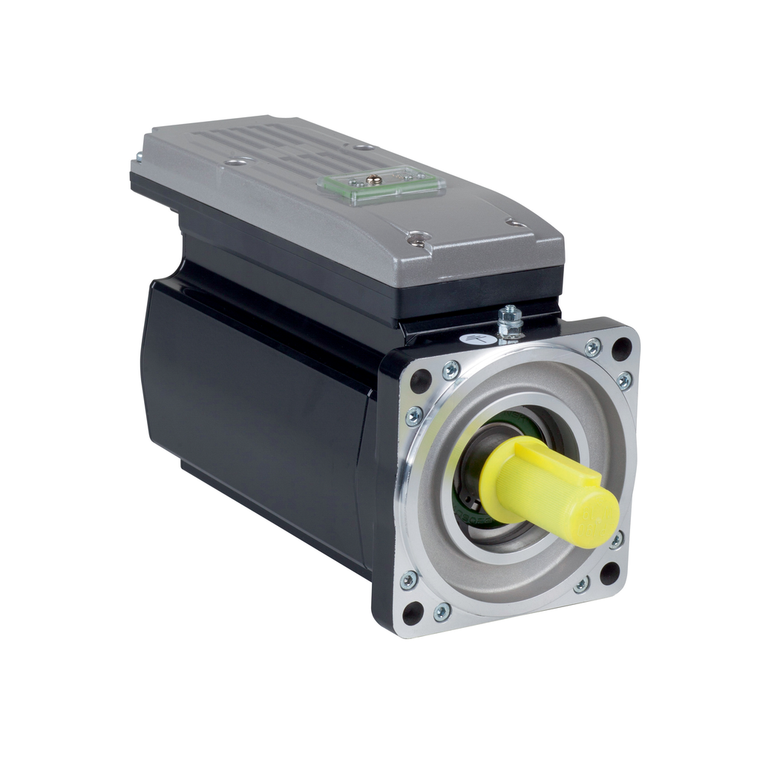

Schneider Electric ILM1002P12F0000 integrated servo motor - 4.4 Nm - 3000 rpm - keyed shaft - multiturn- with brake

SKU:

ILM1002P12F0000

UPC:

MPN:

ILM1002P12F0000

Condition:

New

Continuous Stall Current:

2.9 A

Continuous Stall Torque:

4.4 N.m

Product Or Component Type:

servo motor integrated drive

Nominal Speed:

3000 rpm

Sustainable Offer Status:

Green Premium product

Reach Free Of Svhc:

Yes

Mounting Support:

international standard flange

Environmental Disclosure:

ENVPEP1409011EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shaft End:

keyed

Rohs Exemption Information:

Yes

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Mercury Free:

Yes

Range Of Product:

PacDrive 3

Peak Stall Torque:

18.3 N.m

Type Of Cooling:

natural convection

Shaft Diameter:

19 mm

Number Of Motor Stacks:

2

Key Width:

30 mm

Holding Torque:

5.5 N.m holding brake

Width:

30 mm

Number Of Mounting Holes:

4

Weight:

7.2 kg

Centring Collar Diameter:

95 mm

Number Of Motor Poles:

8

Line Rated Current:

0.0833333333333333

Shaft Length:

40 mm

China Rohs Regulation:

X

Device Short Name:

ILM

Circle Diameter Of The Mounting Holes:

115 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Feedback Type:

absolute multiturn SinCos Hiperface

Stator Inductance:

21.8 mH 20°C Ph/Ph || 10.9 mH 120°C Ph/N

[Us] Rated Supply Voltage:

250...700 V

Ip Degree Of Protection:

IP54

Country of Origin:

United States

Speed Feedback Resolution:

128 periods

Pvc Free:

Yes

Maximum Axial Force Fa:

0.2 x Fr

Warranty:

18 months

Rotor Inertia:

3.01 kg.cm²

Nominal Torque:

2.9 N.m

Mounting Holes Diameter:

9 mm

Net Weight:

7.2 kg

Stator Resistance:

4.12 Ohm 20°C Ph/Ph || 2.86 Ohm 120°C Ph/N

Circularity Profile:

ENVEOLI1409011EN

Torque Constant:

1.52 N.m/A 120°C

Motor Flange Size:

100 mm
