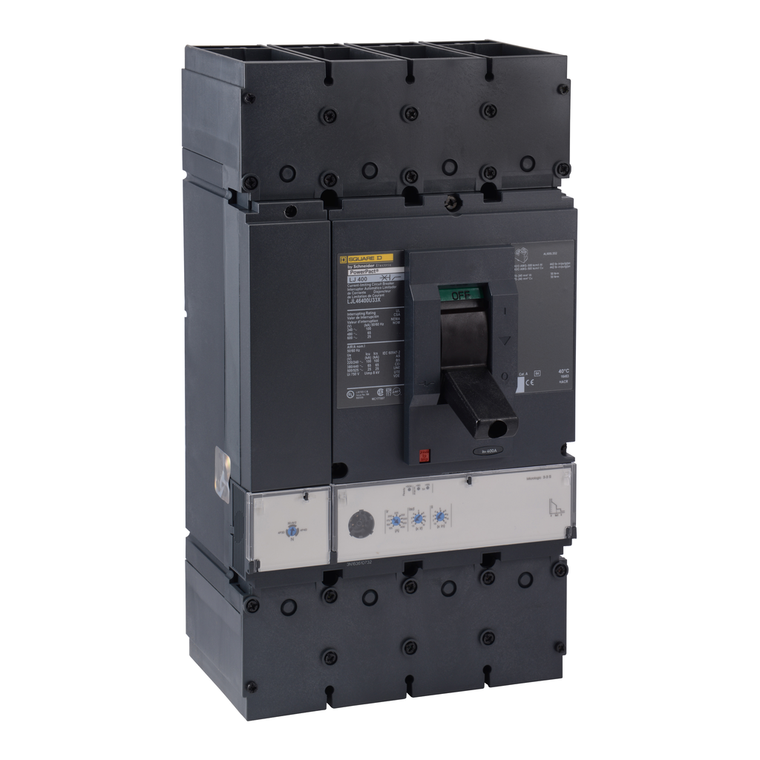

Schneider Electric LJL46400U33X Circuit breaker, PowerPacT L, 400A, 4 pole, 600VAC, 25kA, lugs, MicroLogic 3.3S, 80%

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LJL46400U33X Circuit breaker, PowerPacT L, 400A, 4 pole, 600VAC, 25kA, lugs, MicroLogic 3.3S, 80%

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LJL46400U33X

UPC:

MPN:

LJL46400U33X

Condition:

New

Network Frequency:

50/60 Hz

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Sustainable Offer Status:

Green Premium product

Range:

PowerPact

Local Signaling:

ready 1 LED green) || alarm 1 LED 90 % Ir orange) || alarm LED 105 % Ir red) || switched off (OFF) 1 trip indicator green)

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

750 V IEC 60947-2

Product Name:

PowerPact L

Ip Degree Of Protection:

front cover IP40

Line Rated Current:

400-400 A

Length:

31 mm

Device Short Name:

L-Frame

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Weight:

6.2 kg

Number Of Slots:

2 auxiliary switch OF plug-in) || 1 alarm switch SD plug-in) || 1 overcurrent trip switch SDE plug-in) || 1 voltage release MN or MX plug-in)

Trip Unit Name:

MicroLogic 3.3 S

Communication Interface:

Modbus || Ethernet

Color:

Black

Circularity Profile:

ENVEOLI2206029EN

Tightening Torque:

50-50 N.m 70-240 mm² (AWG 2/0...500 kcmil)

Electrical Connection:

lugs, line || lugs, load

Pvc Free:

Yes

California Proposition 65:

WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information

Utilisation Category:

category A

Awg Gauge:

AWG 2/0...500 kcmil aluminium/copper

Terminal Identifier:

AL600LS52K4

Eu Rohs Directive:

Compliant with Exemptions

Product Certifications:

UL || CSA || NOM

[Uimp] Rated Impulse Withstand Voltage:

8 kV IEC 60947-2

Environmental Disclosure:

ENVPEP2206029EN

Ambient Air Temperature For Operation:

-25-70°C

Depth:

110 mm

Product Or Component Type:

circuit breaker

Mounting Support:

lug

Continuous Current Rating:

0.8

Poles Description:

4P

Warranty:

18 months

Suitability For Isolation:

yes IEC 60947-2

Net Weight:

6.2 kg

Operating Altitude:

< 6561.68 ft (2000 m) without derating || 5000 m with derating

Protection Technology:

current limiter

Wire Stripping Length:

31 mm

Trip Unit Technology:

electronic, standard, MicroLogic 3.3 S, LSI

Mercury Free:

Yes

Long Time Pick-Up Adjustment Range:

0.25...1 x In

[Ics] Rated Service Breaking Capacity:

65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
