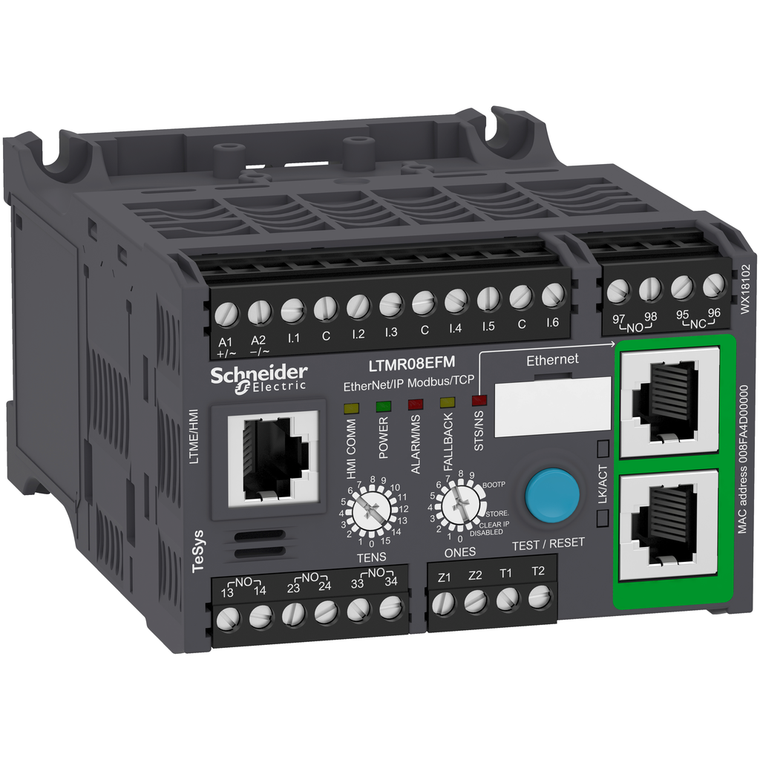

Schneider Electric LTMR08EFM Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 inputs, 3 outputs, 0.4 to 8A, 100 to 240VAC

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric LTMR08EFM Motor controller, TeSys T, Motor Management, Ethernet/IP, Modbus/TCP, 6 inputs, 3 outputs, 0.4 to 8A, 100 to 240VAC

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

LTMR08EFM

UPC:

MPN:

LTMR08EFM

Condition:

New

Warranty:

18 months

Sustainable Offer Status:

Green Premium product

Device Application:

equipment monitoring and control

Current State 1 Guaranteed:

logic input 79...264 V >= 2 mA 25 ms

Circularity Profile:

ENVEOLI100411EN_V2

Electromagnetic Compatibility:

electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || relay outputs and supply: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 ||

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Bus Type:

Ethernet IEEE 802.3 0...159 10...100 Mbit/s, RJ45 2 shielded twisted pairs

Current Consumption:

8...62.8 mA

Mechanical Robustness:

vibrations mounted on symmetrical rail1 Gn, 5...300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5...300 Hz EN/IEC 60068-2-6 || shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27

Supply Voltage Limits:

93.5-264 V AC

Net Weight:

0.53 kg

Environmental Disclosure:

ENVPEP060308EN_V2

Connection Pitch:

5.08 mm

Product Or Component Type:

motor controller

Pollution Degree:

3

Standards:

EN 60947-4-1 || IEC 60947-4-1 || CSA C22.2 No 14 || IACS E10 || UL 508

Contacts Type And Composition:

1 NO + 1 NC fault signal || 3 NO

Overvoltage Category:

III

Product Name:

TeSys T

Maximum Operating Frequency:

2 Hz

Protection Type:

thermal overload protection || overload || thermal protection || locked rotor || phase failure || phase unbalance || load fluctuation || reverse polarity protection || overload (long time) || earth-leakage protection || power factor variation

Current State 0 Guaranteed:

logic input 0...40 V <= 15 mA 25 ms

Device Short Name:

LTMR

Mercury Free:

Yes

Ip Degree Of Protection:

IP20

Input Current:

3.1 mA 100 V || 7.5 mA 240 V

Metering Type:

earth-fault current || imbalance current || temperature || average current Iavg || phase current I1, I2, I3 RMS

Height:

61 mm

Logic Input Number:

6

Web Services:

web server

Depth:

122.5 mm

Operating Altitude:

<= 6561.68 ft (2000 m) without derating

[Uimp] Rated Impulse Withstand Voltage:

4 kV supply, inputs and outputs EN/IEC 60947-4-1 || 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 || 0.8 kV communication circuit EN/IEC 60947-4-1

Eu Rohs Directive:

Compliant with Exemptions

Tightening Torque:

control circuit 0.5-0.6 N.m flat 3 mm

Ambient Air Temperature For Storage:

-40-80°C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

[Us] Rated Supply Voltage:

100...240 V AC 50/60 Hz

Rohs Exemption Information:

Yes

Halogen Content Performance:

Halogen free plastic parts product

[Ui] Rated Insulation Voltage:

690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508

Permissible Power:

480 VA AC-15), Ie = 2 A, 500000 cycles output) || 30 W DC-13), Ie = 1.25 A, 500000 cycles output)

Compatibility Code:

LTMR

Communication Port Protocol:

Modbus TCP/EtherNet/IP

Maximum Operating Rate:

1800 cyc/h

Product Certifications:

NOM || LROS (Lloyds register of shipping) || RMRoS || CSA || BV || KERI || GL || ABS || ATEX || RINA || UL || C-tick || EAC || CCC || DNV

Load Current:

5 A 250 V AC logic output || 5 A 30 V DC logic output
