Schneider Electric

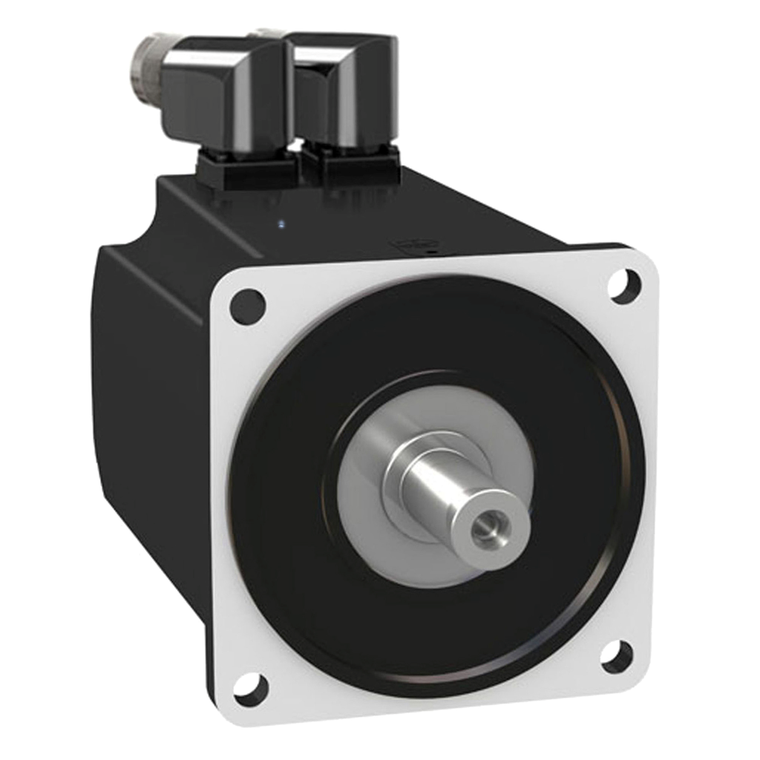

Schneider Electric MH31402P07F2200 servo motor MH3 140 19,5Nm,no key,multi 16 lines,brake,IP65/IP67,3kRPM

SKU:

MH31402P07F2200

UPC:

MPN:

MH31402P07F2200

Condition:

New

[Us] Rated Supply Voltage:

115...480 V

Continuous Stall Torque:

18.5 N.m, 115...480 V, three phase

Environmental Disclosure:

ENVPEP111002EN

Product Or Component Type:

AC servo motors

Number Of Mounting Holes:

4

Ip Degree Of Protection:

IP65 standard

Second Shaft:

without second shaft end

Nominal Torque:

16.34 N.m LXM52 14.87 mA, 115 V, 1 phase || 14.0 N.m LXM52 13.13 mA, 230 V, 1 phase || 10.17 N.m LXM52 9.76 mA, 400 V, 3 phase || 10.17 N.m LXM52 9.76 mA, 480 V, 3 phase || 16.34 N.m LXM62 14.87 mA, 115 V, 1 phase || 14.0 N.m LXM62 13.13 mA, 230 V, 1

Rotor Inertia:

33.5 kg.cm²

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Circularity Profile:

N/A

Length:

227 mm

Holding Torque:

18 N.m

Encoder Type:

multiturn SinCos Hiperface

Mounting Support:

international standard flange

Rohs Exemption Information:

Yes

Electrical Connection:

rotatable right-angled connectors

Device Short Name:

MH3

Number Of Motor Poles:

10

Phase:

three phase

Shaft Length:

50 mm

Nominal Output Power:

1.71 W, 115 V || 2.93 W, 230 V || 3.73 W, 400 V || 3.73 W, 480 V

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Nominal Speed:

1000 rpm LXM52 14.87 mA, 115 V, 1 phase || 2000 rpm LXM52 13.13 mA, 230 V, 1 phase || 3500 rpm LXM52 9.76 mA, 400 V, 3 phase || 3500 rpm LXM52 9.76 mA, 480 V, 3 phase || 1000 rpm LXM62 14.87 mA, 115 V, 1 phase || 2000 rpm LXM62 13.13 mA, 230 V, 1 pha

Holding Brake:

with

Type Of Cooling:

natural convection

Pvc Free:

Yes

Net Weight:

14.3 kg

Stator Inductance:

2.99 mH

Torque Constant:

1.1 N.m/A 120°C

Maximum Mechanical Speed:

4000 rpm

Speed Feedback Resolution:

16 periods

Stator Electrical Time Constant:

13 ms

Shaft End:

smooth shaft

Maximum Current Irms:

57.42 A

Peak Stall Torque:

55.5 N.m, 115...480 V, three phase

Motor Flange Size:

140 mm

Weight:

14.3 kg

Mounting Holes Diameter:

11 mm

Sustainable Offer Status:

Green Premium product

Stator Resistance:

0.23 Ohm

Continuous Power:

3730 W

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Brake Pull-In Power:

18 W

Maximum Radial Force Fr:

2240 N 1000 rpm || 1780 N 2000 rpm || 1550 N 3000 rpm

Mercury Free:

Yes

Shaft Diameter:

24 mm

Range Compatibility:

PacDrive 3
