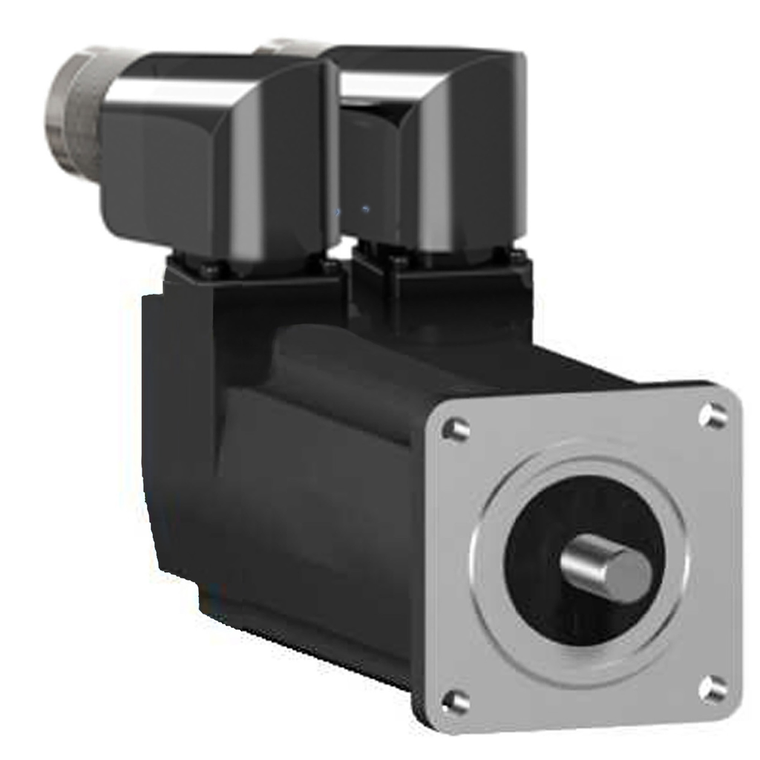

Schneider Electric SH30553P02A2100 servo motor SH3 055 1,05Nm,nokey,multi,nobrake,90°conn.IP65/IP65,9k RPM
SKU:
SH30553P02A2100
UPC:
MPN:
SH30553P02A2100
Condition:
New
Mercury Free:
Yes
Maximum Mechanical Speed:
9000 rpm
Nominal Speed:
4000 rpm 230 V single phase || 9000 rpm 480 V three phase || 2000 rpm 115 V single phase || 8000 rpm 400 V three phase
Shaft Length:
20 mm
Mounting Holes Diameter:
5.5 mm
Torque Constant:
0.62 N.m/A 120°C
[Us] Rated Supply Voltage:
115...480 V
Net Weight:
1.8 kg
Shaft End:
smooth shaft
Shaft Diameter:
9 mm
Holding Brake:
without
Product Or Component Type:
servo motor
Maximum Radial Force Fr:
190 N 8000 rpm || 390 N 1000 rpm || 310 N 2000 rpm || 270 N 3000 rpm || 240 N 4000 rpm || 230 N 5000 rpm || 210 N 6000 rpm || 200 N 7000 rpm
Mounting Support:
international standard flange
Range Compatibility:
PacDrive 3
Circularity Profile:
N/A
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rotor Inertia:
0.134 kg.cm²
China Rohs Regulation:
X
Circle Diameter Of The Mounting Holes:
63 mm
Nominal Output Power:
240 W 115 V single phase || 460 W 230 V single phase || 880 W 400 V three phase || 970 W 480 V three phase
Encoder Type:
absolute multiturn SinCos Hiperface
Number Of Mounting Holes:
4
Weight:
1.8 kg
Centring Collar Depth:
2 mm
Ip Degree Of Protection:
IP65 motor: conforming to EN/IEC 60034-5 || IP65 shaft bushing: conforming to EN/IEC 60034-5
Continuous Stall Torque:
1.05 N.m 115...480 V three phase
Nominal Torque:
1.13 N.m 115 V single phase || 1.1 N.m 230 V single phase || 0.81 N.m 400 V three phase || 0.81 N.m 480 V three phase
Pvc Free:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Continuous Stall Current:
1.7 A
Peak Stall Torque:
3.5 N.m 115...480 V three phase
Warranty:
18 months
Phase:
three phase
Sustainable Offer Status:
Green Premium product
Back Emf Constant:
41 V/krpm 20°C
Device Short Name:
SH3.....P
Stator Inductance:
37.98 mH
Continuous Power:
680 W
Centring Collar Diameter:
40 mm
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
This product is part of the Lexium 52 & Motors range, an offer of servo motors for PacDrive 3. The 3-pole servo motor features maximum mechanical speed of 9000RPM and smooth shaft end without...
