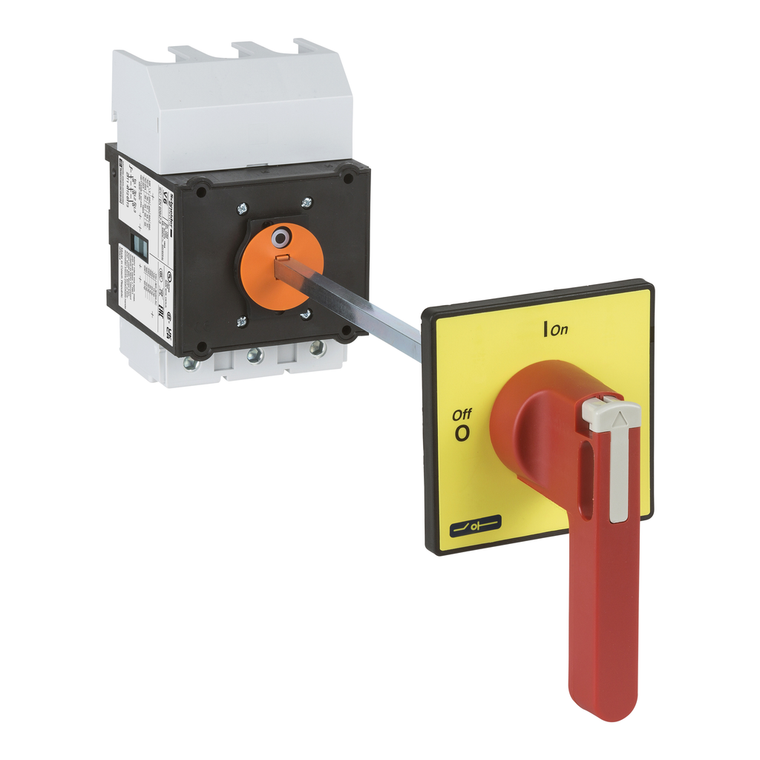

Schneider Electric VCCF5 Switch disconnector,TeSys Control,for ON/emergency stop,125A,4 screws fixing,for mounting at back of an enclosure
VCCF5 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 125A 690V, it is used for main and emergency stop switching in motor applications up to 37kW@400V AC-23. Composed of a V5 switch body, extension shaft, red padlockable handle, and a yellow 90x90mm front plate. For enclosure back mounting, with a 4 screw fixing handle, it ensures IP65 to the mounting. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Possible distance between back of enclosure and door 330-350mm. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
- Fire Resistance:
- 960°C IEC 60695-2-1
- Standards:
- IEC 60947-3
- Rated Conditional Short-Circuit Current:
- 10 kA 400 V 125 A aM || 10 kA 400 V 125 A gG
- Height:
- 125 mm
- Mercury Free:
- Yes
- Protective Treatment:
- TC
- Product Or Component Type:
- emergency stop switch disconnector
- [Icm] Rated Short-Circuit Making Capacity:
- 2.8 kA 400 V at Ipeak
- Eu Rohs Directive:
- Compliant with Exemptions
- [Ithe] Conventional Enclosed Thermal Current:
- 100 A
- Product Certifications:
- CCC || UL || CSA || GL || UKCA
- Mechanical Durability:
- 30000 cycles
- Mechanical Robustness:
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
- [Ue] Rated Operational Voltage:
- 690 V AC 50/60 Hz
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Icw] Rated Short-Time Withstand Current:
- 1500 A 400 V 1 s
- Breaking Capacity:
- 1000 A 400 V AC-21A) || 1000 A 400 V AC-22A) || 1000 A 400 V AC-23A)
- Network Type:
- DC || AC
- [Ie] Rated Operational Current:
- 68.5 A AC-23 Ue: 400 V
- Compatibility Code:
- main switch disconnector
- Poles Description:
- 3P
- Handle Colour:
- red
- Device Short Name:
- VCCF
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP65
- Rotary Handle Padlocking:
- 1 to 3 padlocks 4-8 mm
- Rated Operational Power In W:
- 22 kW 230...240 V AC-3) || 30 kW 400...415 V AC-3) || 30 kW 690 V AC-3) || 37 kW 500 V AC-3) || 37 kW 690 V AC-23A) || 45 kW 500 V AC-23A) || 22 kW 230...240 V AC-23A) || 37 kW 400...415 V AC-23A)
- Rohs Exemption Information:
- Yes
- Electrical Durability:
- 30000 cycles AC-21 || 30000 cycles DC-1...5
- Making Capacity:
- 1250 A 400 V AC-21A || 1250 A 400 V AC-22A || 1250 A 400 V AC-23A
- Fixing Mode:
- by 4 screws handle || by clips switch || by screws switch
- Mounting Support:
- handle door || switch symmetrical rail || switch plate
- Sustainable Offer Status:
- Green Premium product
- Connections - Terminals:
- power circuit screw clamp terminals 95-95 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - with cable end
- Net Weight:
- 1.32 kg
- Control Type:
- rotary handle
- Weight:
- 1.32 kg
- Rotary Handle Mounting Style:
- extended
- Warranty:
- 18 months
- Intermittent Duty Class:
- 30
- Base Dimension:
- 90 x 90 mm
- Marking:
- 0 - 1
- [Uimp] Rated Impulse Withstand Voltage:
- 8 kV
- Suitability For Isolation:
- yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -20-50°C
- Environmental Disclosure:
- ENVPEP2211006
