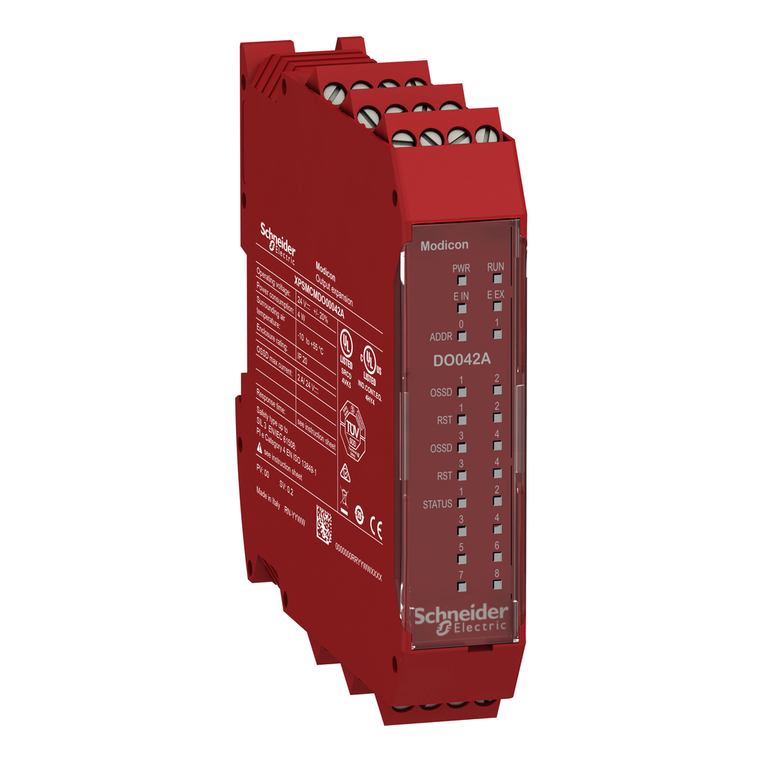

Schneider Electric XPSMCMDO00042A 4 Digital output 2A expansion modules with screw term

Schneider Electric XPSMCMDO00042A 4 Digital output 2A expansion modules with screw term

Schneider Electric
SKU:
XPSMCMDO00042A
$545.03
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Modicon MCM safe output expansion module has 4 single channel solid state OSSD high current (2A), which can be used as 4 single or 2 dual OSSD + 8 status outputs SIL 1/ PL c and is fitted with captive screw clamp terminals. It is designed to monitor remotely your safe I/O. It is furnished with screw clamp terminals, removable terminal block for electrical connection. It is an IP20 rated product. This safe I/O module figures configurable output activation and de-activation delays, independent control of pairs of outputs, and configurable diagnostic output signals. This module figures LEDs on its front face, displaying the status (power supply, run, internal or external errors, input and output status). This safe I/O module is connected to the safety controller via the backplane expansion connector. It weighs 0.15kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. It is ideal for monitoring safety functions such as emergency stop, guard monitoring, perimeter guarding, position monitoring, speed monitoring and enabling movement. This safe I/O module is certified by RCM, CULus and TÃœV. It can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PLe conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL3 conforming to IEC 62061. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The module instals on Omega 35mm DIN rail conforming to EN 50022. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
Additional Information
Connections - Terminals:
2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
Product Or Component Type:
safe output expansion module
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Insulation:
250 V AC between power supply and housing IEC 61800-5-1
Ip Degree Of Protection:
IP20 enclosure)
Discrete Output Voltage:
24 V DC
Net Weight:
0.25 kg
Load Type:
resistive load
Number Of Outputs:
4 safety outputs OSSD safety outputs OSSD || 8 configurable diagnostic connection
Safety Reliability Data:
DC > 99 % || MTTFd = 395 years high || PFHd = 8.64E-9 1/h
Mounting Support:
omega 35 mm DIN rail EN 50022
Range Of Product:
Preventa Safety automation
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Electrical Connection:
screw terminal
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Local Signaling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 4 LEDs green/red OUT output status || 4 LEDs yellow RST restart signal || 8 LEDs yellow S
Power Consumption In W:
3 W
Product Certifications:
TÃœV || RCM || cULus
Number Of Terminal Blocks:
6
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev
Overvoltage Category:
II
Integrated Connection Type:
backplane expansion bus
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weight:
0.25 kg
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
Discrete Input Voltage:
24 V DC
Depth:
22.5 mm
Vibration Resistance:
+/-0.35 mm 10-55 Hz)IEC 61496-1
Pollution Degree:
2
Ambient Air Temperature For Operation:
-10-55°C
Number Of Inputs:
4 digital external device monitoring
Safety Level:
can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || can reach SIL 3 IEC 61508 || SILCL 3 IEC 62061
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 61800-5-1
Discrete Output Current:
2 A || 100 mA
Standards:
IEC 61800-5-1 || ISO 13849-1 || IEC 61508 || IEC 62061
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Power Dissipation In W:
3 W
Discrete Output Type:
PNP
Cable Cross Section:
0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible with cable end, without bezel || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with c
Rohs Exemption Information:
Yes
Quality Labels:
CE
Reach Free Of Svhc:
Yes
Device Short Name:
XPSMCM
Output Load:
60 Ohm
Mercury Free:
Yes
Group Of Channels:
4 single or 2 dual channel high load 2A/output
